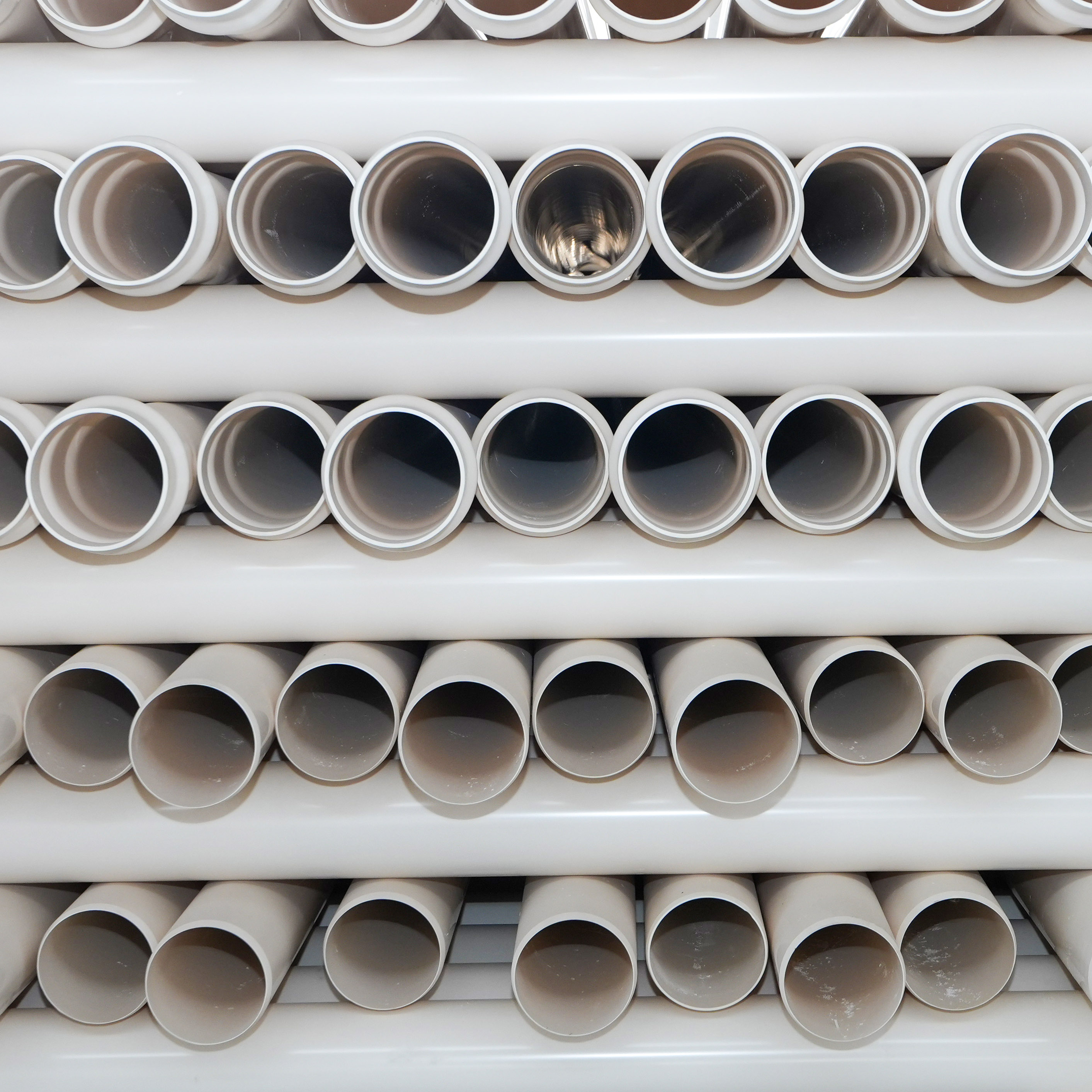

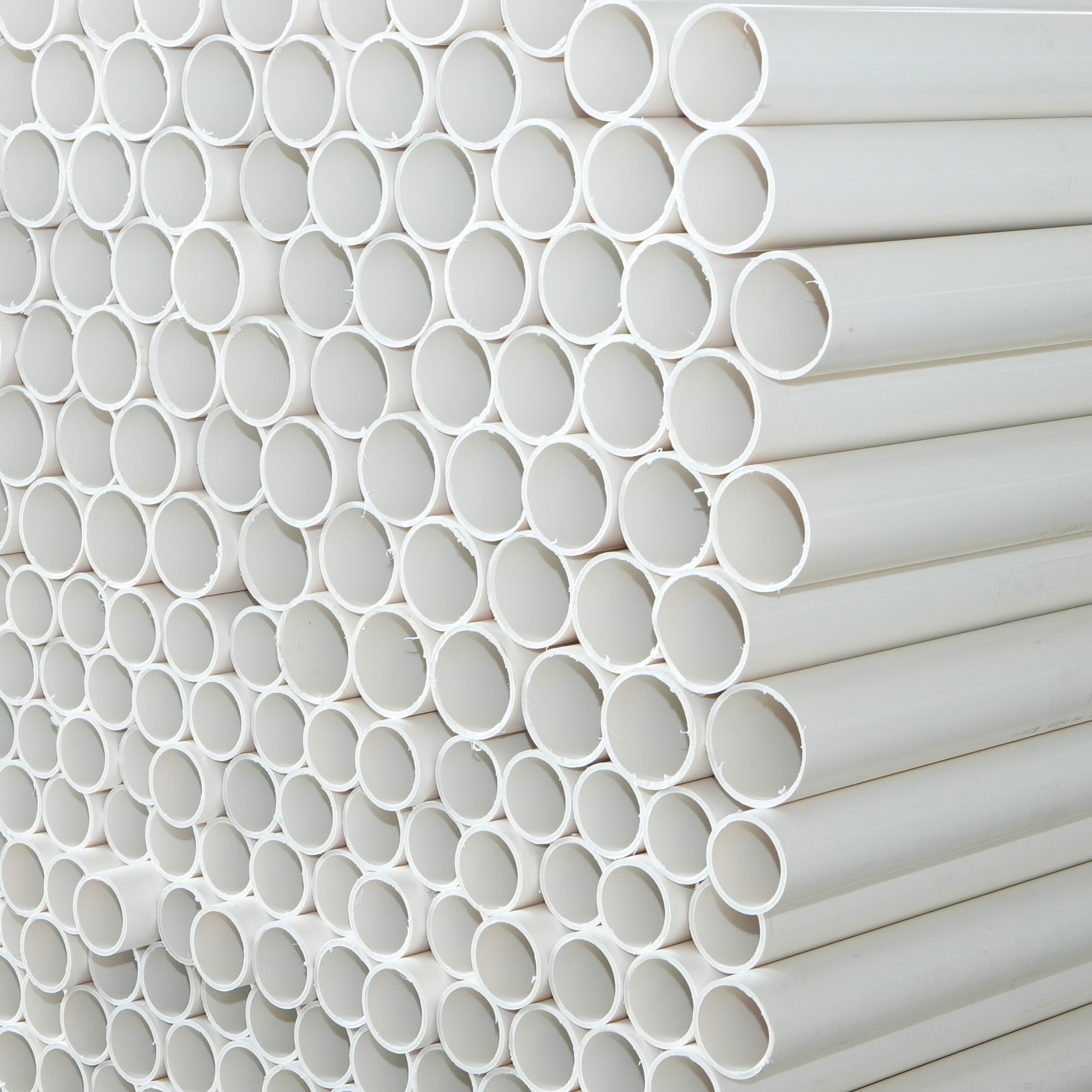

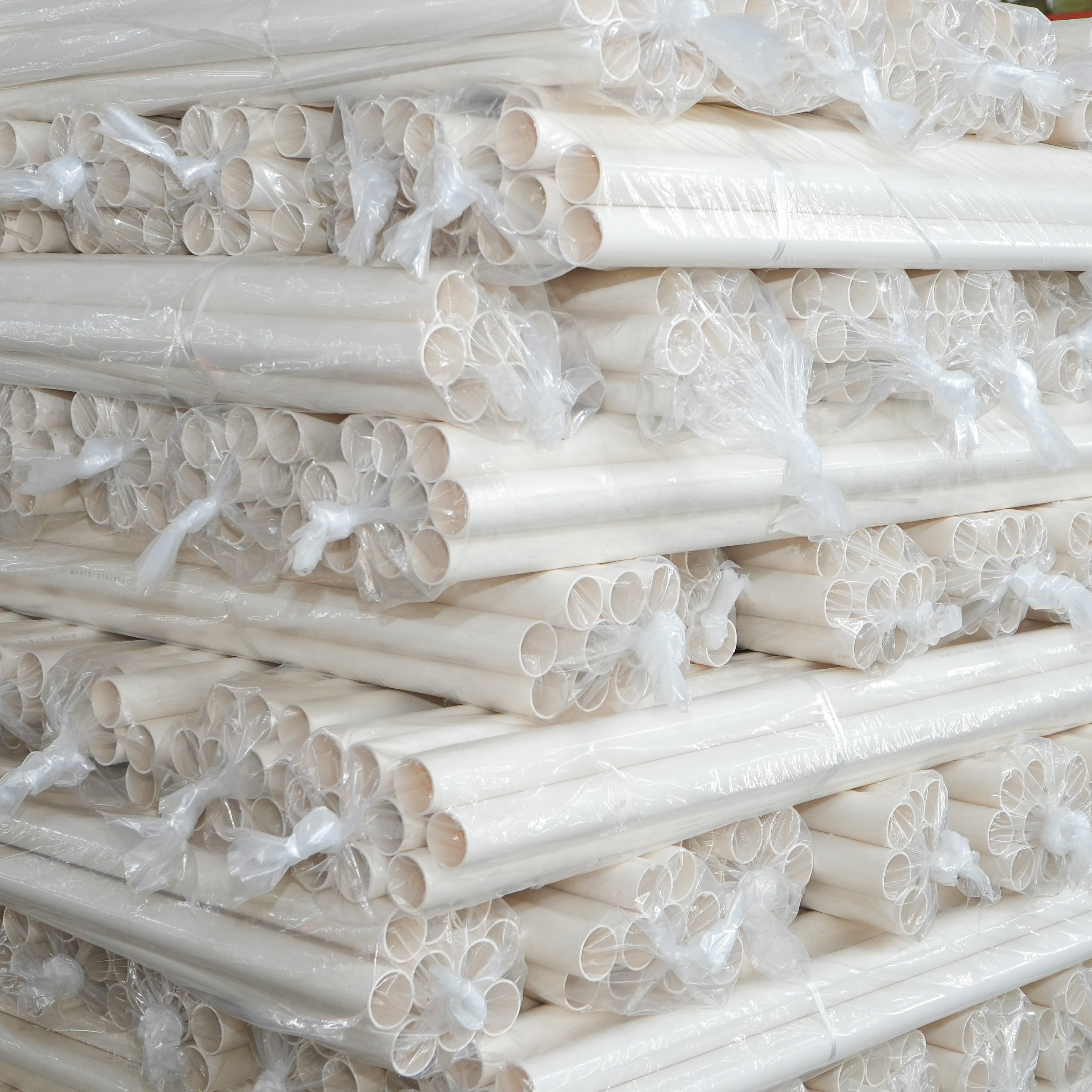

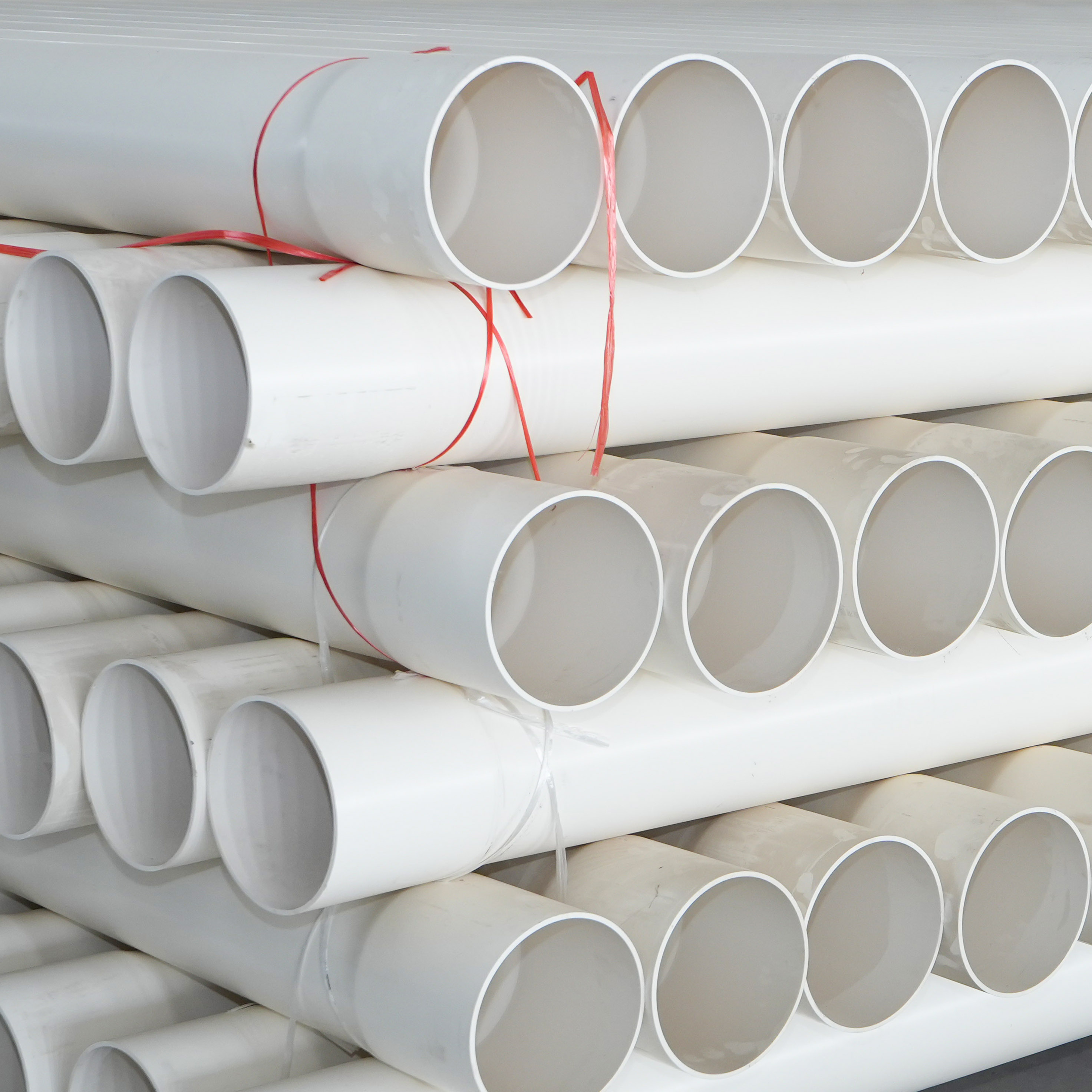

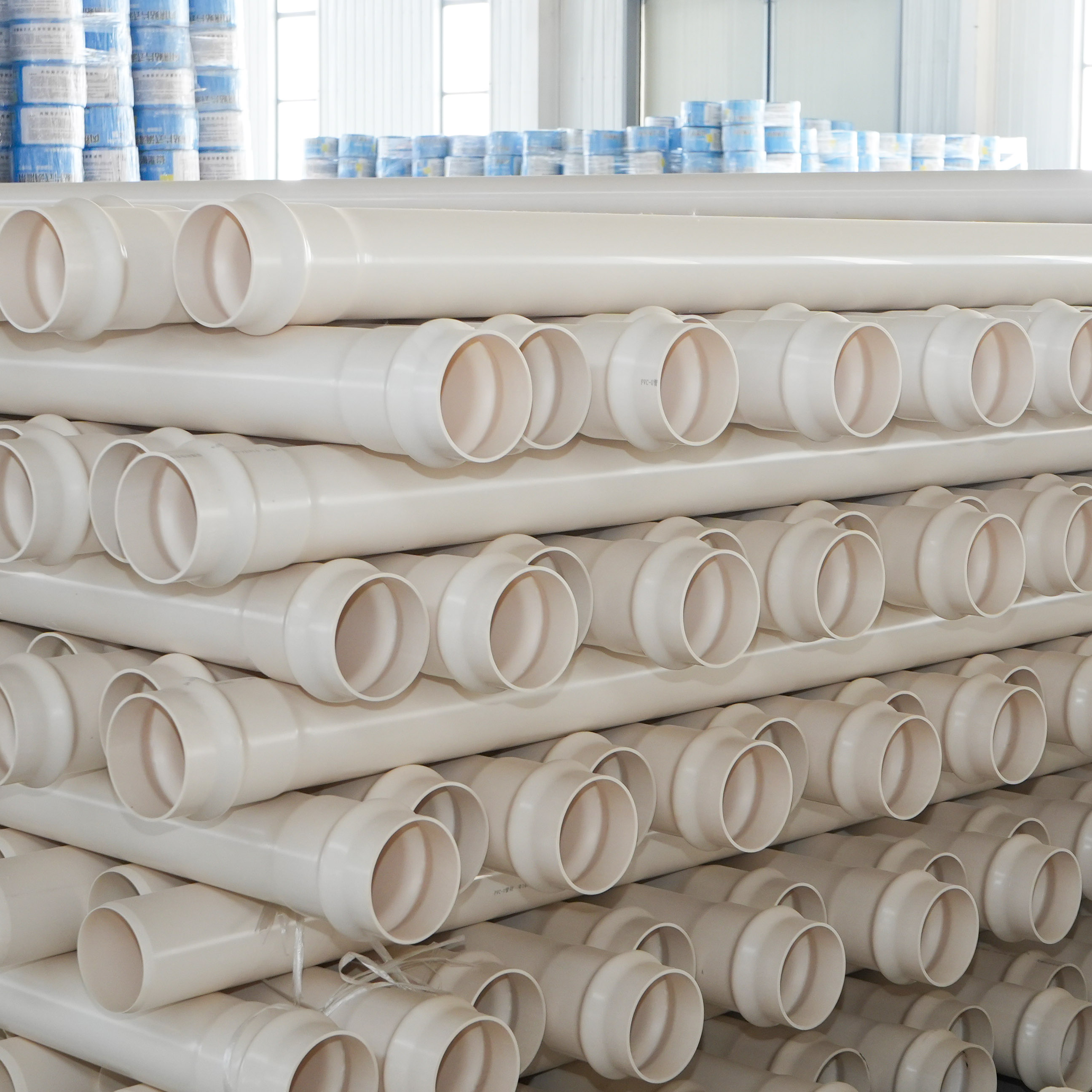

Made from flame-retardant ABS resin with added environmentally friendly flame retardants and manufactured through extrusion molding, this flame-retardant low-voltage information cable protection conduit is a fire-safety upgraded version of ordinary ABS communication conduits. While retaining the core advantages of ordinary ABS communication conduits (rigid/flexible) such as insulation, impact resistance, dimensional stability, and corrosion resistance, it achieves key performance characteristics such as self-extinguishing upon removal from flame, low smoke and low toxicity, and flame resistance through flame-retardant modification. It is specifically designed to meet the low-voltage wiring needs of enclosed/semi-enclosed spaces, densely populated areas, and key fire protection zones in buildings. It comes in two main types: flame-retardant rigid ABS communication conduits and flame-retardant flexible ABS communication conduits, complementing ordinary ABS communication conduits to form a regular + flame-retardant combination. It is a core supporting pipe material for low-voltage engineering projects requiring fire safety.
The core features of the flame-retardant ABS communication conduit are "upgraded flame retardancy + full retention of the inherent advantages of ABS base material + dual rigid/flexible structure adaptation." All features comply with fire safety regulations and low-voltage protection requirements, differentiating it from ordinary ABS communication conduits (non-flame-retardant) and flame-retardant PVC communication conduits (poor impact resistance, brittle at low temperatures). It combines high flame retardancy, high protection, and high adaptability.
Using environmentally friendly halogen-free/low-halogen flame retardants, the flame retardant rating reaches the national standard B1 level (GB 8624) / Flame Retardant B level. Upon contact with open flame, only localized melting occurs, and it self-extinguishes within 3-5 seconds after the flame is removed, eliminating the risk of fire spread. During combustion, it produces no toxic or harmful dense smoke or irritating toxic gases, only a small amount of low-smoke molten droplets, complying with fire safety regulations for buildings and densely populated areas, preventing low-voltage wiring from becoming a source or contributor to fires.
Flame retardant modification does not alter the inherent properties of the ABS material. It still possesses excellent electrical insulation (isolating stray currents, preventing electromagnetic interference, ensuring stable low-voltage signals), high impact resistance (not easily damaged by bumps/compression, superior to flame-retardant PVC), dimensional stability (no deformation/brittleness at -30℃~75℃ temperature changes, low thermal expansion coefficient), and corrosion resistance (does not react with acids, alkalis, salts, cement mortar, or humid air, requiring no anti-corrosion maintenance), fully meeting the basic protection needs of low-voltage cables.
Available in flame-retardant rigid and flexible versions, the structure is consistent with ordinary ABS communication conduits: the rigid version has high rigidity and resistance to external pressure, suitable for flame-retardant installation in straight pipe sections and buried main pipes; the flexible version can be freely cold-bent with a small bending radius, suitable for flame-retardant installation in confined spaces and complex layouts. Both versions combine flame retardant performance and structural characteristics, covering all low-voltage wiring installation methods.
The flame-retardant rigid type resists external pressure and impact, preventing deformation and collapse when buried or surface-mounted; the flame-retardant flexible type retains its toughening and modification characteristics, allowing for repeated bending without plastic deformation, and remains non-brittle even in low-temperature environments in northern regions. It will not crack during installation, dragging, or corner bending, far superior to the impact resistance shortcomings of flame-retardant PVC corrugated pipes.
The inner wall remains a precisely smooth surface, without burrs or unevenness, preventing damage to the cable insulation/outer sheath during wiring and reducing wiring resistance; it is compatible with various connection methods such as socket bonding, rubber ring sealing, and snap-on connectors. After connection, it is waterproof, sand-proof, and dustproof, achieving full enclosed protection and preventing cables from being soaked or aged in humid/confined environments. The sealing structure does not affect the flame-retardant performance.
The density is far lower than that of flame-retardant metal pipes. The small and medium-diameter flame-retardant rigid type can be manually handled, and the flame-retardant flexible type is supplied in coils (50/100m/roll), eliminating the need for frequent splicing; the pipes are easy to cut (ordinary pipe cutters/scissors are sufficient), allowing for rapid installation in confined fire protection spaces such as weak current shafts, ceiling interlayers, and concealed wall conduits, meeting the needs for rapid construction/renovation in high-risk fire areas.
Mainly focusing on small and medium-diameter refined laying, the flame-retardant rigid type has a nominal outer diameter of dn20~dn110mm, and the flame-retardant flexible type has a nominal outer diameter of dn16~dn50mm, both of which are mainstream small and medium diameters for low-voltage engineering. Wall thickness is available in light, medium, and heavy types, allowing for flexible selection based on fire protection area level, installation method, and number of cables. Single coil/single length is adapted to on-site construction, reducing the number of joints and minimizing weak points in fire protection at the joints.
Using environmentally friendly flame retardants (halogen-free/low-halogen), no toxic or harmful substances are released during production and use, preventing pollution of indoor environments, soil, and water bodies. After the pipes are discarded, they can be melted down and recycled, as the flame retardant components do not affect recycling. This meets the dual requirements of green building and fire safety, differentiating it from the pollution problems associated with traditional halogen-containing flame-retardant pipes.
The flame retardant integrates well with the ABS base material, and long-term use (buried/exposed/enclosed environments) will not result in flame retardant leaching or failure, ensuring long-term and stable flame retardant performance. At the same time, it retains the UV resistance and aging resistance characteristics of ABS, preventing powdering and cracking of the pipe body even when exposed outdoors (in areas requiring fire safety), with a designed service life of over 30 years.
| Pipe type | Flame retardant rating | Core advantages | Core disadvantages | Suitable fire protection scenarios |
| Flame-retardant ABS communication conduit | Flame-retardant B1 grade | Flame-retardant and low-smoke, impact-resistant and flexible, dimensionally stable | Limited by large diameter molding capabilities | Enclosed building spaces and densely populated areas (all scenarios) |
| Standard ABS communication conduit | Flammable grade | Excellent impact resistance, smooth wire threading | Not flame retardant, unsuitable for fire-prone areas | Conventional low-voltage scenarios without fire protection requirements |
| Flame-retardant PVC communication conduit | Flame-retardant B1 grade | Low cost, complete range of specifications | Poor impact resistance, brittle at low temperatures, prone to aging | Simple installation in low-requirement fire protection areas |
| Flame-retardant PE communication conduit | Flame-retardant B2 grade | Good flexibility, excellent corrosion resistance | Low flame retardancy rating, insufficient rigidity | Outdoor buried low-grade fire protection areas |
| Flame-retardant coated steel pipe | Flame-retardant B1 grade | Extremely high mechanical strength | Heavy weight, high cost, easily conductive | Heavy-duty installation in ultra-high-risk fire protection areas |
The core use of flame-retardant ABS communication pipes revolves around "laying low-voltage information pipelines with fire safety requirements," adapting to enclosed/semi-enclosed spaces, densely populated areas, and high-risk fire areas as required by building fire safety codes. It covers all low-voltage engineering projects in municipal, building, transportation, industrial parks, and mining sectors that need to meet fire safety standards. It can protect all low-voltage cables, including fiber optic cables, network cables, monitoring cables, building intercom lines, and fire safety low-voltage lines. The rigid flame-retardant type is suitable for straight pipe sections and buried main pipes, while the flexible flame-retardant type is suitable for confined spaces and complex routing.
1. High-rise/Super high-rise buildings: Laying network cables and fire safety low-voltage lines (alarm lines, linkage lines) in enclosed/semi-enclosed spaces such as weak current shafts, vertical shafts, suspended ceiling interlayers, and pipe shafts; protecting security monitoring lines and emergency broadcast lines near stairwells and evacuation passages, meeting the flame-retardant requirements for low-voltage pipelines in high-rise buildings;
2. Densely populated places: Indoor low-voltage wiring in shopping malls, supermarkets, cinemas, stadiums, high-speed rail station waiting rooms, and airport terminals; protecting monitoring lines and data lines in suspended ceilings and near display cabinets to prevent pipelines from contributing to fire spread;
3. Key fire-protected buildings: Concealed low-voltage wiring in wards/classrooms/guest rooms of hospitals, schools, nursing homes, and hotels; laying security monitoring lines and fire safety low-voltage lines in underground garages and civil defense projects, adapting to the enclosed, high-temperature fire safety environment underground;
4. Commercial complexes/office buildings: Laying network cables and telephone lines in office partition walls, weak current shafts, and equipment rooms; refined flame-retardant low-voltage wiring in core CBD buildings, balancing flexible installation in office environments with fire safety requirements.
1. Urban Core Business Districts and Old City Areas: Underground/surface protection of low-voltage fiber optic cables and monitoring lines in densely populated pedestrian streets, squares, and underpasses; fire-retardant protection for low-voltage municipal pipe networks laid in the same trench as fire protection pipe networks;
2. Urban Public Facilities: Installation of low-voltage pipe networks around key fire-protected public buildings such as libraries, museums, exhibition halls, and government service centers, adapting to the high fire safety requirements for cultural relics protection and densely populated areas;
3. Municipal Fire Lanes and Emergency Passages: Installation of low-voltage communication trunk lines along fire lanes, using fire-retardant rigid conduits for underground protection to prevent damage to pipelines during fires and ensure emergency communication.
1. Industrial Parks/Chemical Parks: Low-voltage wiring in office areas, R&D buildings, and auxiliary workshops in non-explosion-proof areas; fire-retardant installation of communication pipes and monitoring lines along fire lanes in the park, adapting to the fire safety requirements of the park's fire protection zones;
2. Manufacturing Plants: Installation of equipment control lines and monitoring lines in workshops of light industry and manufacturing factories; fire-retardant protection of low-voltage pipelines around warehouses (Class C/D) to prevent warehouse fires from spreading to low-voltage pipelines;
3. Logistics Parks/Storage Areas: Installation of security monitoring lines and barcode scanning data lines in large logistics warehouses and cold chain storage facilities, using fire-retardant flexible conduits to adapt to narrow spaces next to shelves and in sorting areas, balancing fire safety and flexible wiring.
1. High-speed rail stations / Airports / Bus stations: Low-voltage wiring concealed in the ceilings and walls of waiting areas, ticketing halls, and platforms; fire-retardant protection for emergency broadcast lines and monitoring lines along platforms and passages, meeting the fire safety requirements of high-density transportation hubs;
2. Expressways / National highways: Indoor and outdoor low-voltage wiring in service areas and toll stations; buried low-voltage communication conduits (fire-retardant rigid type) within safe distances around gas stations and CNG stations, avoiding fire risks in flammable and explosive areas;
3. Urban rail transit: Low-voltage wiring in subway platforms, passages, and underground station halls, using fire-retardant ABS communication conduits for fire-rated protection, meeting the low-smoke and fire-retardant requirements of enclosed subway spaces.
1. Financial / Security key locations: Security alarm lines and high-definition monitoring lines in banks, jewelry stores, and museums; fire-retardant flexible conduits used for detailed protection in confined spaces such as ceilings and near safes;
2. Smart fire protection / Smart communities: Fire safety low-voltage lines and IoT sensor data lines in smart communities; fire-retardant wiring in building corridors and low-voltage shafts, achieving a combination of intelligence and fire protection;
3. Large venues: Low-voltage wiring around the stage and in the audience areas of stadiums, exhibition centers, and theaters, meeting the high fire safety requirements for large events with dense crowds.
1. Temporary fire safety areas on construction sites: Low-voltage wiring in temporary offices and worker dormitories on construction sites; fire-retardant protection for monitoring lines along temporary fire escape routes; reusable after construction completion;
2. Cultural heritage buildings: Low-voltage communication and monitoring lines around ancient buildings and cultural heritage sites, using fire-retardant low-smoke conduits to avoid secondary damage to cultural relics from fire (dense smoke/toxic gases);
3. Data centers / Small server rooms: Cable management in low-voltage boxes and small data server rooms; fire-retardant low-voltage connections from server rooms to outdoor main conduits, meeting the fire protection requirements of precision equipment in server rooms.
Flame-retardant ABS communication conduit is a specialized upgraded piping material for low-voltage electrical engineering projects with fire safety requirements. Its core value lies in solving the dual pain points of ordinary ABS communication conduits ("lack of flame retardancy, prohibited in fire-prone areas") and traditional flame-retardant low-voltage conduits (PVC/PE) ("poor impact resistance, unstable dimensions, and poor low-smoke performance"). It achieves a triple combination of "flame-retardant fire safety performance + high-performance ABS base material + rigid/flexible dual structure".
By creating a **"flame-retardant version + regular version"** scenario pairing with ordinary ABS communication conduits, the former is responsible for flame-retardant low-voltage wiring in enclosed spaces, densely populated areas, and high-risk fire areas, while the latter is used for conventional low-voltage scenarios without fire safety requirements. Together, they achieve comprehensive coverage of all scenarios and fire safety levels in low-voltage electrical engineering projects. Simultaneously, its environmentally friendly, low-smoke, and easy-to-install characteristics ensure that low-voltage wiring meets fire safety regulations while also considering engineering efficiency and cable protection. It is currently a cost-effective and preferred piping material for fire-rated low-voltage wiring in construction, municipal, transportation, and other fields.
