Choosing the right ABS pipe size is not always as simple as reading the number printed on the pipe. A 3-inch pipe does not measure exactly 3 inches across, and confusing nominal size with outside diameter or inside diameter can lead to poor fitting connections, weak joints, or reduced drainage performance. For residential repairs, commercial drainage lines, or industrial wastewater systems, understanding ABS pipe dimensions helps buyers and installers match the correct pipe, fittings, wall thickness, and application before cutting or gluing.
The first rule of ABS pipe sizing is that the printed size is a trade size, not a literal measurement across the pipe. Nominal pipe size helps buyers, installers, and suppliers identify a compatible pipe family, while actual outside diameter controls whether the pipe will fit into a coupling, elbow, tee, reducer, or adapter. This difference often surprises homeowners replacing an exposed drain line because the measured OD may look larger than the size printed on the pipe.
Outside diameter is especially important when connecting ABS pipe to fittings. If the OD does not match the fitting socket, the joint may not seat correctly, even if the pipe appears close in size. Inside diameter has a different role because it affects the usable flow path for wastewater, air, or liquid movement. In simple terms, OD decides whether the connection fits, while ID helps determine how efficiently the system can drain.
Wall thickness affects strength, rigidity, weight, and the internal opening of the pipe. Schedule 40 is the most common reference for ABS drain, waste, and vent systems because it provides a practical balance between durability, flow capacity, and easy installation. Schedule 80 may be used in some industrial or higher-abuse environments, but it is not the default choice for most residential DWV systems.
A thicker wall can improve resistance to mechanical stress, but it also reduces the inside diameter when the outside diameter stays within the same nominal size family. That may not matter in a short vent section, but it can affect flow in a long drain run or a high-volume wastewater line. Stronger pipe is not automatically better if it creates compatibility issues or unnecessary cost. The correct schedule should match the application, expected load, installation environment, and fitting system.
An ABS pipe dimensions chart should be treated as a working tool, not just a reference table. A reliable chart should help confirm nominal size, outside diameter, wall thickness, average inside diameter, and sometimes pipe weight or socket compatibility. These figures are useful when planning a new system, replacing a damaged section, or matching pipe to existing fittings.
Manufacturer data also matters because small dimensional tolerances can affect dry fitting, socket depth, and mixed-brand compatibility. Two products may follow the same dimensional standard, yet field installation can still feel different if tolerances, fitting design, or hub depth vary. A practical workflow is to read the pipe marking, measure the OD, check the chart, and confirm that fittings come from a compatible product system.
Nominal Size | Outside Diameter (OD) | Inside Diameter (ID) | Wall Thickness | Typical Use |
3/4" | 1.05" | 0.81" | 0.12" | Residential sinks |
1" | 1.315" | 1.029" | 0.143" | Laundry, bathroom |
2" | 2.375" | 2.067" | 0.154" | Branch drains |
3" | 3.5" | 3.07" | 0.215" | Toilets, main lines |
4" | 4.5" | 4.026" | 0.237" | Commercial drainage |
6" | 6.625" | 6.067" | 0.279" | Industrial / municipal |
Residential drainage usually uses smaller and mid-range ABS pipe sizes because each fixture has a different drainage demand. Light-duty or specialty lines may involve smaller diameters, while sinks, showers, laundry drains, toilets, branch drains, and vent systems usually require sizes selected according to fixture load and local plumbing code. A 3/4 inch pipe may suit limited light-duty applications, but it should not be assumed suitable for ordinary waste drainage without checking the system design.
The mistake many buyers make is choosing by fixture name alone. A bathroom or kitchen drainage layout may include a trap arm, branch connection, vent, stack, and horizontal run, and each part may have a different size requirement. Drainage performance also depends on slope and venting, not only pipe diameter. A larger ABS pipe cannot fix a line that is poorly pitched, badly vented, or blocked by an unsuitable fitting layout.
Commercial and industrial drainage systems require more careful sizing because flow volume, maintenance access, and service reliability carry higher consequences. Larger sizes, such as 4 inch and 6 inch pipe systems, are often used for main drainage lines, commercial wastewater branches, high-use wash areas, and facility-level drainage networks. Longer sections, such as 10 ft or 20 ft pipe lengths, can reduce the number of joints and may improve installation speed on larger projects.
Industrial buyers should also consider what the pipe will carry. ABS pipe has useful chemical resistance for many wastewater and drainage applications, but it is not a universal solution for every solvent, acid, oil, or high-temperature discharge. The selected dimension must work together with chemical compatibility, temperature limits, support spacing, and access for maintenance. If the line will be buried, suspended, or exposed to equipment traffic, the design should also account for bedding, impact risk, and repair clearance.
Agricultural drainage, industrial fluid transport, and specialty wastewater applications often require more than a simple size recommendation. Soil movement, debris load, vibration, outdoor exposure, and cleaning access can influence the correct diameter and installation method. A smooth internal wall helps maintain flow efficiency, but the pipe still needs correct slope and enough access points for inspection or cleaning.
Cold environments are another reason many buyers compare ABS pipe with other plastic piping materials. ABS generally offers strong impact resistance, which can help during handling, cutting, and installation in low-temperature conditions. Outdoor use requires more caution because long-term sunlight exposure can affect many plastics. When a system is above ground or exposed to weather, designers should consider protection, support, and whether another material may be better for heavy UV exposure.

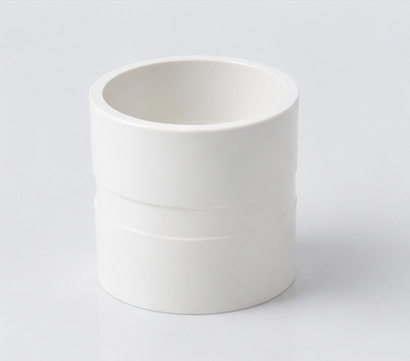

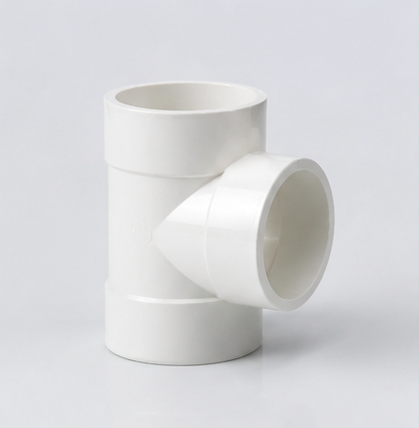

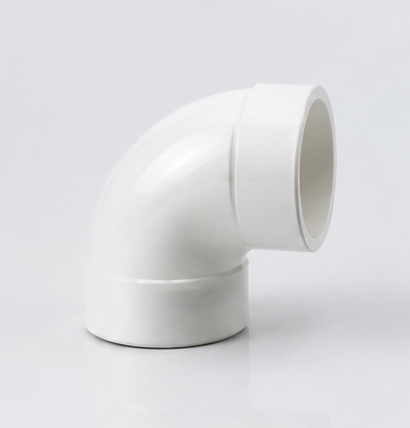

Fittings are where dimension errors usually become visible. Elbows, tees, couplings, sanitary tees, wyes, reducers, and repair couplings are built around matching nominal size and outside diameter, but they do not all serve the same function. A sanitary tee, for example, should not be treated as a universal directional fitting in every drainage layout.
Socket depth also deserves attention because a pipe may appear to fit during a loose test but fail to seat fully once cement is applied. A square cut allows the pipe end to reach the correct depth inside the hub, while burrs can interfere with seating or collect debris inside the drain. Proper fitting selection protects both the joint and the flow path. This is why ABS pipe dimensions should always be checked together with fitting type, not as a pipe-only measurement.
Many repair and renovation projects involve connecting ABS pipe to PVC because existing systems, local supply chains, or previous installations may use both materials. Similar dimensions do not mean the two materials should be joined casually. The transition method must be approved for the application and accepted by the local authority.
Depending on the region and project type, installers may use a listed transition cement or a mechanical transition coupling designed for plastic drainage pipe. Standard ABS cement should not be treated as a universal adhesive for PVC. Before cutting into a working line, confirm the material label, pipe size, fitting type, and transition product instructions. This prevents leaks, failed inspections, and difficult repairs behind walls or below slabs.
One practical advantage of ABS pipe is that many typical installations use a one-step solvent welding process. Unlike PVC, ABS usually does not require primer before cementing, which can simplify work on the jobsite and reduce installation time. This advantage only works when the pipe and fitting surfaces are clean, dry, properly cut, and assembled within the working time of the cement.
Solvent welding is not simply gluing two plastic parts together. The cement softens the mating surfaces so the pipe and fitting fuse as the joint cures. Too little cement can leave dry gaps, while too much cement can create internal beads that disturb flow or trap debris. Proper technique matters as much as selecting the correct diameter.
The most common mistake is measuring an existing pipe and assuming that the ruler reading equals the trade size. Nominal size is not a literal outside measurement, so the pipe may look larger than the label suggests. Confusion becomes even more likely when ABS, PVC, metal, or older pipe materials appear in the same repair area.
A better method is to measure the outside diameter with calipers or a pipe measuring tool, then compare the result with a reliable chart. Printed markings should be used when visible, but field conditions often hide, stain, or damage them. Measure a clean and undistorted section rather than a cut end that has been deformed by tools. If the reading falls between expected sizes, check for ovality, damage, or a mismatched material.
Another frequent mistake is treating every pipe with the same nominal size as identical. Schedule, wall thickness, and ID affect strength, stiffness, and usable flow area. A replacement section may appear to fit the hub but still behave differently if its wall thickness or product category does not match the system.
Long horizontal runs need correct support to reduce sagging. Buried lines need bedding that prevents point loading and pipe distortion. Industrial or agricultural systems may face vibration, temperature variation, soil pressure, or chemical exposure that basic residential assumptions do not cover. Wall thickness should therefore be judged as part of the full operating environment, not as an isolated number.
Fitting compatibility is not only about pipe diameter. Hub style, socket depth, sweep angle, reducer design, and transition approval all influence whether the system works after installation. A fitting that looks close on a shelf may not be right for a drainage line, especially when flow direction or cleaning access matters.
Mixed brands can often work when they follow the same dimensional standards, but professional projects should still confirm tolerances and product data. Repair kits and pipe reamers can help recover damaged sections, yet they do not solve a wrong-size selection. For leak prevention, dry-fit every joint, check alignment, and avoid twisting the assembly after the solvent begins to set. The safest ABS pipe installation is planned before the first cut is made.
Accurately understanding ABS pipe dimensions is essential for ensuring proper drainage, fitting compatibility, and long-term system performance. By carefully considering nominal size, outside diameter, inside diameter, and wall thickness, installers and buyers can avoid common errors and maintain reliable flow in residential, commercial, and industrial systems.
Hebei Anduan Technology Industry Co., Ltd. provides precision-manufactured ABS pipe and fittings designed to meet these dimensional standards. Their products support efficient installation, consistent performance, and simplified maintenance, helping projects achieve reliable drainage outcomes while reducing the risk of rework or mismatched components.
A: ABS pipe stands for Acrylonitrile Butadiene Styrene, a thermoplastic used in drainage, waste, vent, and industrial fluid systems due to its durability and chemical resistance.
A: Check the nominal size, outside diameter (OD), inside diameter (ID), and wall thickness. OD determines fitting compatibility, while ID affects flow capacity.
A: Yes, most ABS pipe installations use solvent welding without primer, simplifying assembly while ensuring a secure, leak-resistant joint.
A: Residential systems typically use 3/4" to 3" pipe, while commercial and industrial applications often require 4" to 6" pipe or larger, depending on flow and load.
A: Use approved transition fittings or couplings designed for ABS-to-PVC connections, ensuring joint compatibility and adherence to local plumbing codes.
A: Wall thickness and schedule affect strength, rigidity, and flow capacity. Choosing the correct schedule ensures durability under the intended pressure and environmental conditions.
