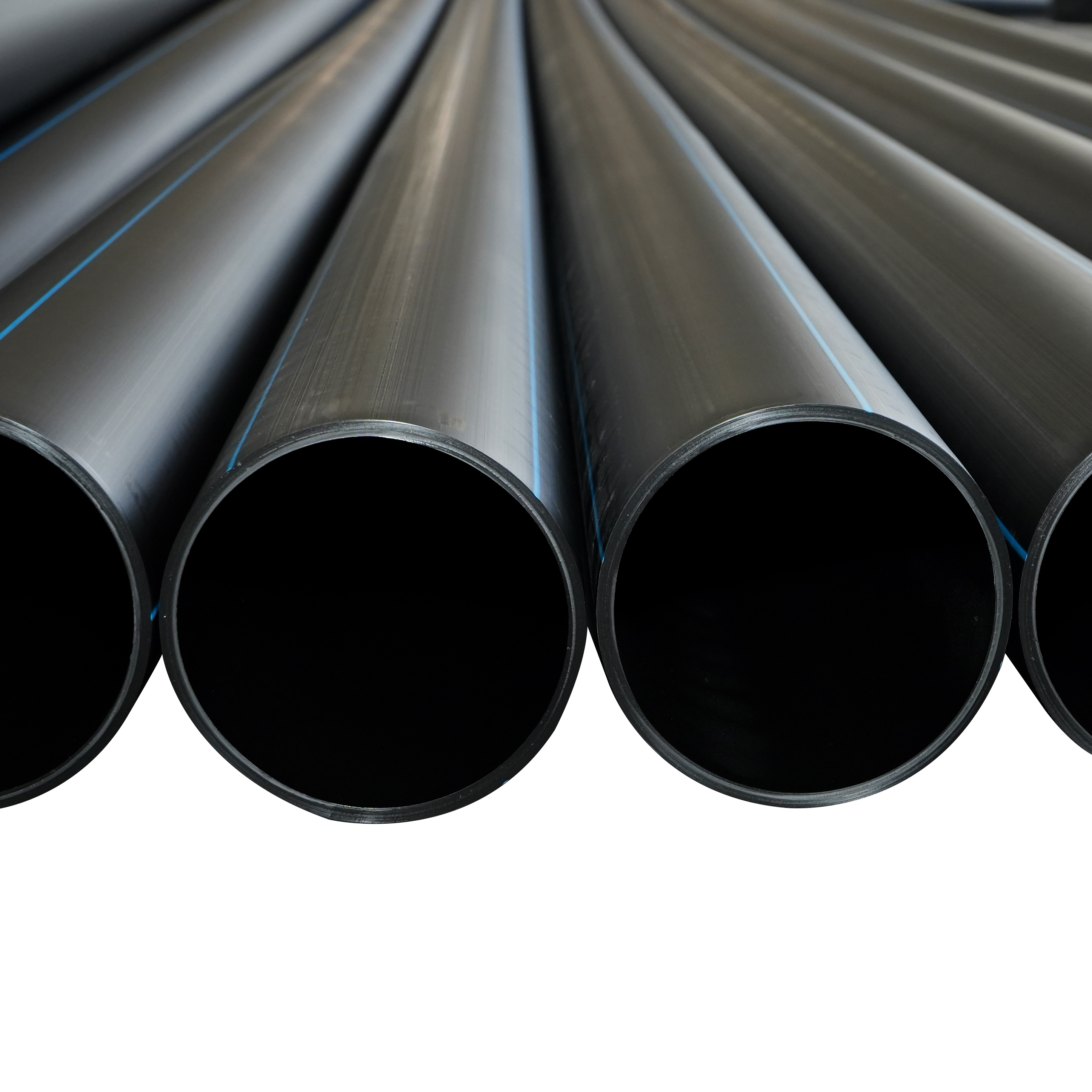

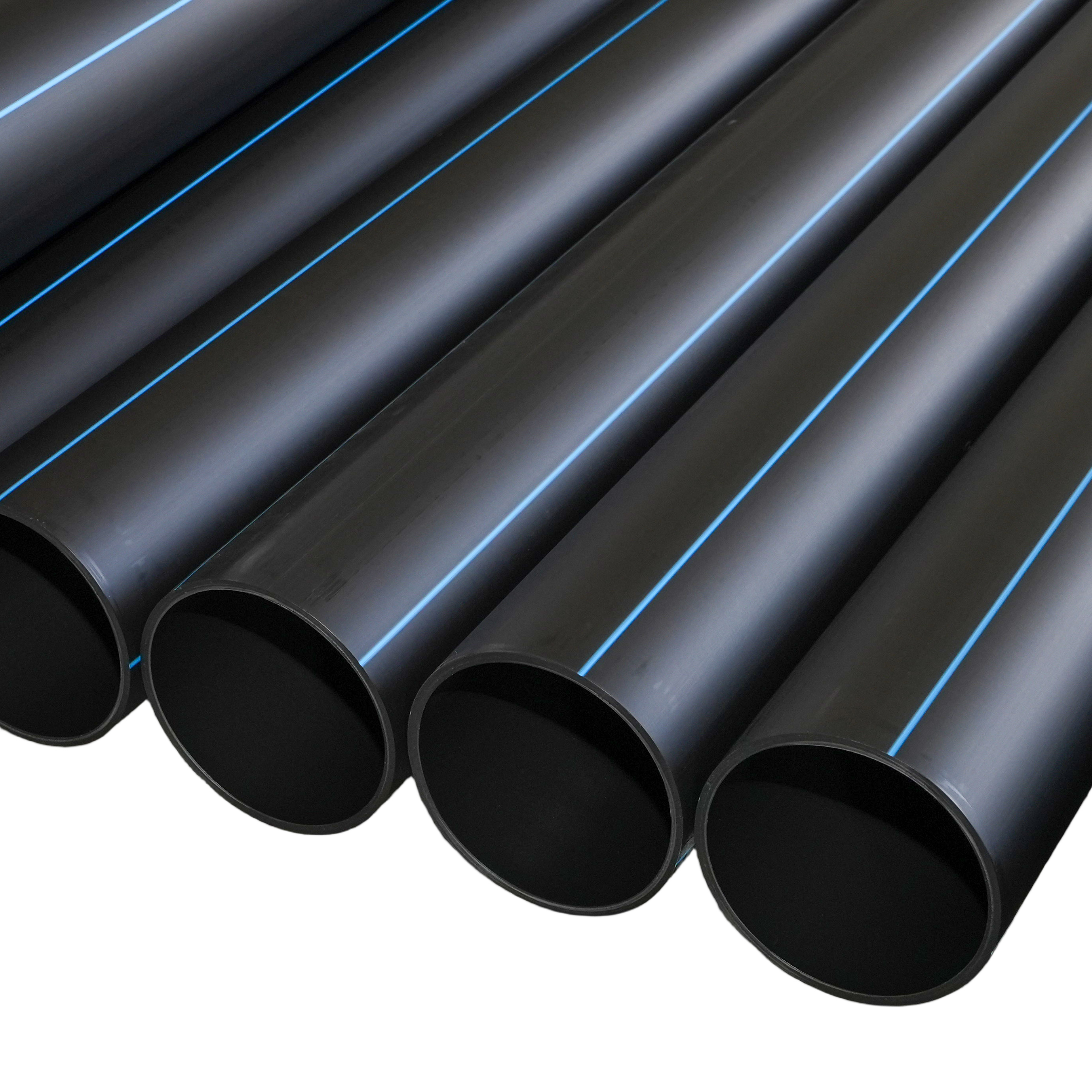

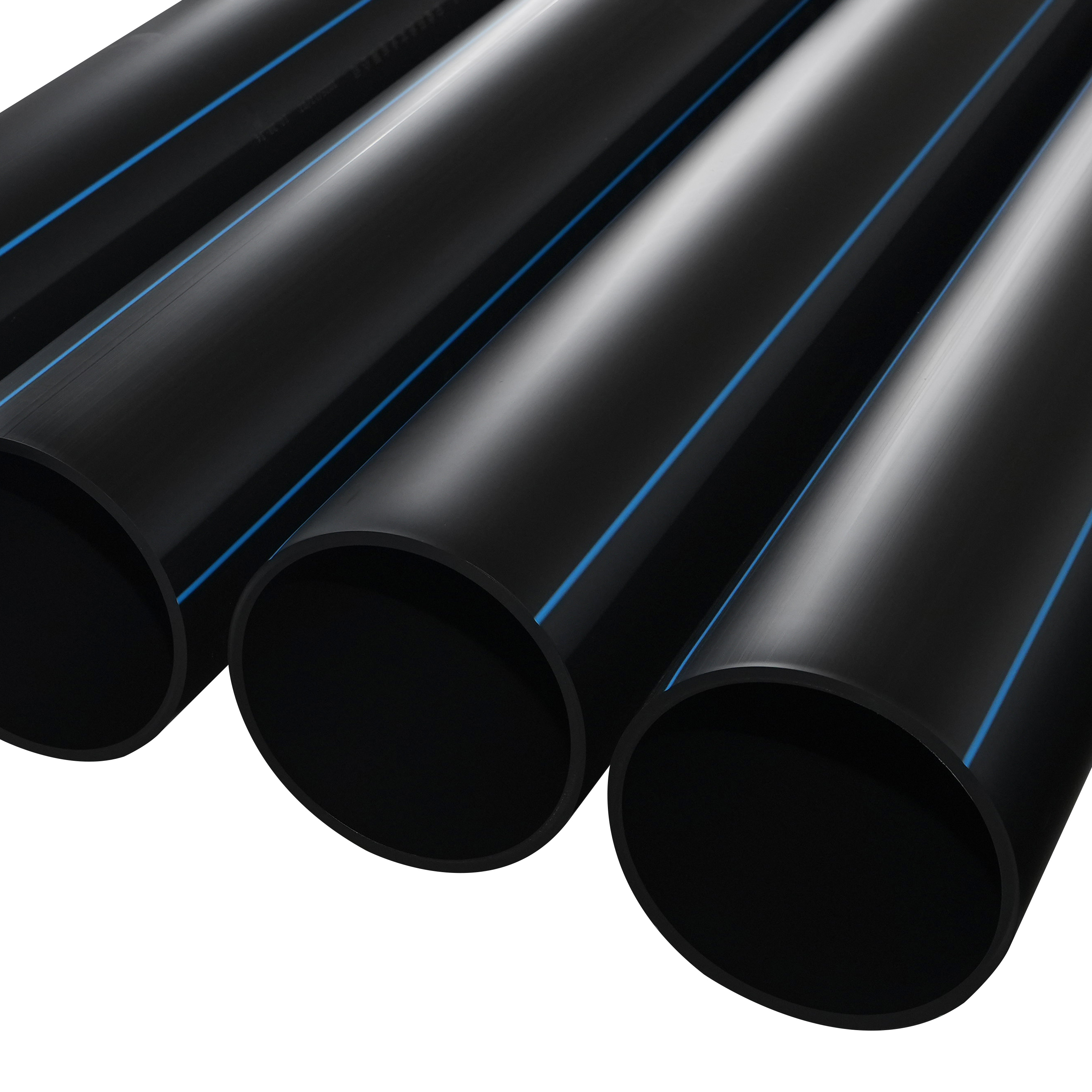

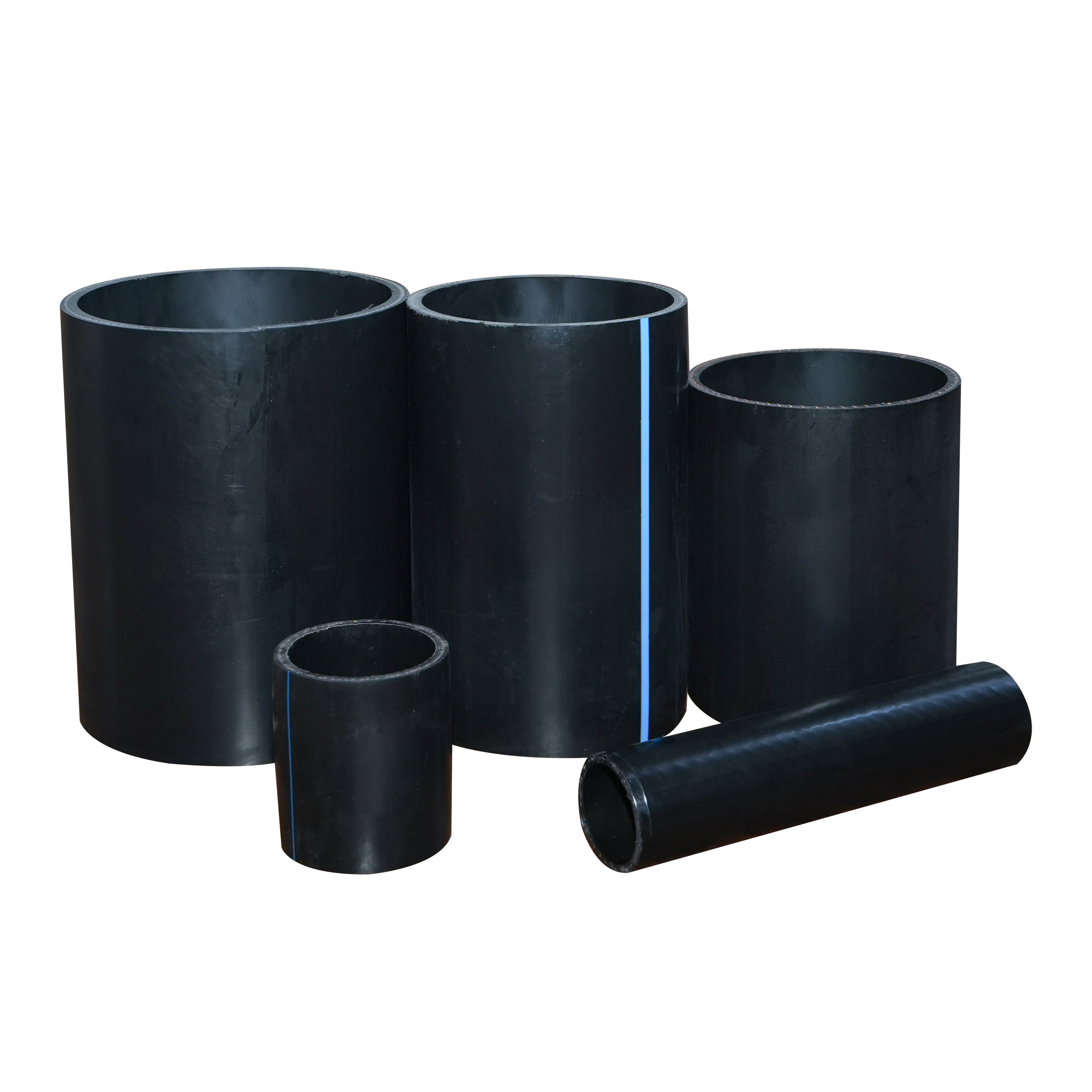

Engineered to exact European specifications, our CE Certified PE Water Pipe serves as a definitive solution for demanding drinking water infrastructure. Upon physical inspection, the pipe presents a distinct black exterior—often co-extruded with vivid blue identification stripes—and a remarkably smooth, glossy inner bore designed to minimize fluid friction loss. The material, predominantly PE80 and PE100 grade high-density polyethylene (HDPE), feels exceptionally dense and solid to the touch, yet it retains the crucial flexibility required for navigating complex underground routing. It emits absolutely zero chemical odor, a vital sensory indicator of its food-grade purity and safety. Carrying the official CE certification mark, this piping system guarantees unrestricted compliance across all 27 EU member states. It provides utility contractors and procurement teams with a dependable, 50-year-rated asset that strictly adheres to EN 12201 standards, eliminating trade barriers and ensuring long-term operational stability for municipal, commercial, and residential networks.
Technical Index | Details |
Compliance Standard | EN 12201 (5-part full series, covers materials, dimensions, mechanical properties, tests) |
Main Material Grade | PE80 (MRS 8MPa), PE100 (MRS 10MPa, mainstream choice) |
Nominal Pressure Rating | PN6, PN8, PN10, PN12.5, PN16 (0.6–1.6 MPa) |
Structure & Form | Solid-wall pipe; ≤63mm (coil, 50–100m/coil); ≥75mm (straight pipe) |
Connection Methods | Butt fusion, electrofusion (standard sealing connection) |
Hygiene Compliance | EU Drinking Water Directive (98/83/EC) |
The EN 12201 framework dictates strict thresholds for raw material leachables and heavy metal content. Our PE water pipe entirely eliminates these contamination risks. The non-porous, glass-like internal surface actively prevents biological buildup and biofilm proliferation over decades of use. Water transported through these conduits retains its original taste, clarity, and purity, meeting immediate direct-drinking standards without any threat of secondary contamination.
The CE designation serves as a rigorous technical passport, confirming that the physical and hygienic properties align perfectly with strict European directives. For international project developers, this certification removes administrative friction during customs clearance and site inspections, ensuring rapid deployment in regulated territories and avoiding costly regional trade barriers.
We enforce an ISO 9001-governed tracking protocol from resin pellet to finished extrusion. Every batch undergoes specialized Oxidation Induction Time (OIT) testing to verify thermal stability against premature aging, guaranteeing the 50-year design life. Furthermore, we mandate strict physical evaluations—including hydrostatic pressure resistance, elongation at break, and Melt Mass-Flow Rate (MFR) analysis—ensuring the structural integrity is 100% verified before dispatch.
Manufactured from 100% recyclable, food-grade HDPE, this product actively supports circular economy initiatives. The extrusion process operates with optimized energy consumption, yielding a carbon footprint remarkably smaller than that of traditional concrete or ductile iron alternatives. At the end of its extensive service life, the material can be fully repurposed, realizing truly green production.
Beyond the pipe itself, we deliver a comprehensive fluid conveyance system tailored to specific engineering demands. Our joint components undergo rigorous assembly performance testing to ensure flawless compatibility with both butt fusion and electrofusion techniques. Once welded, the joints form a monolithic structure that feels completely unified, guaranteeing zero leakage and high-pressure sealing across the entire network.

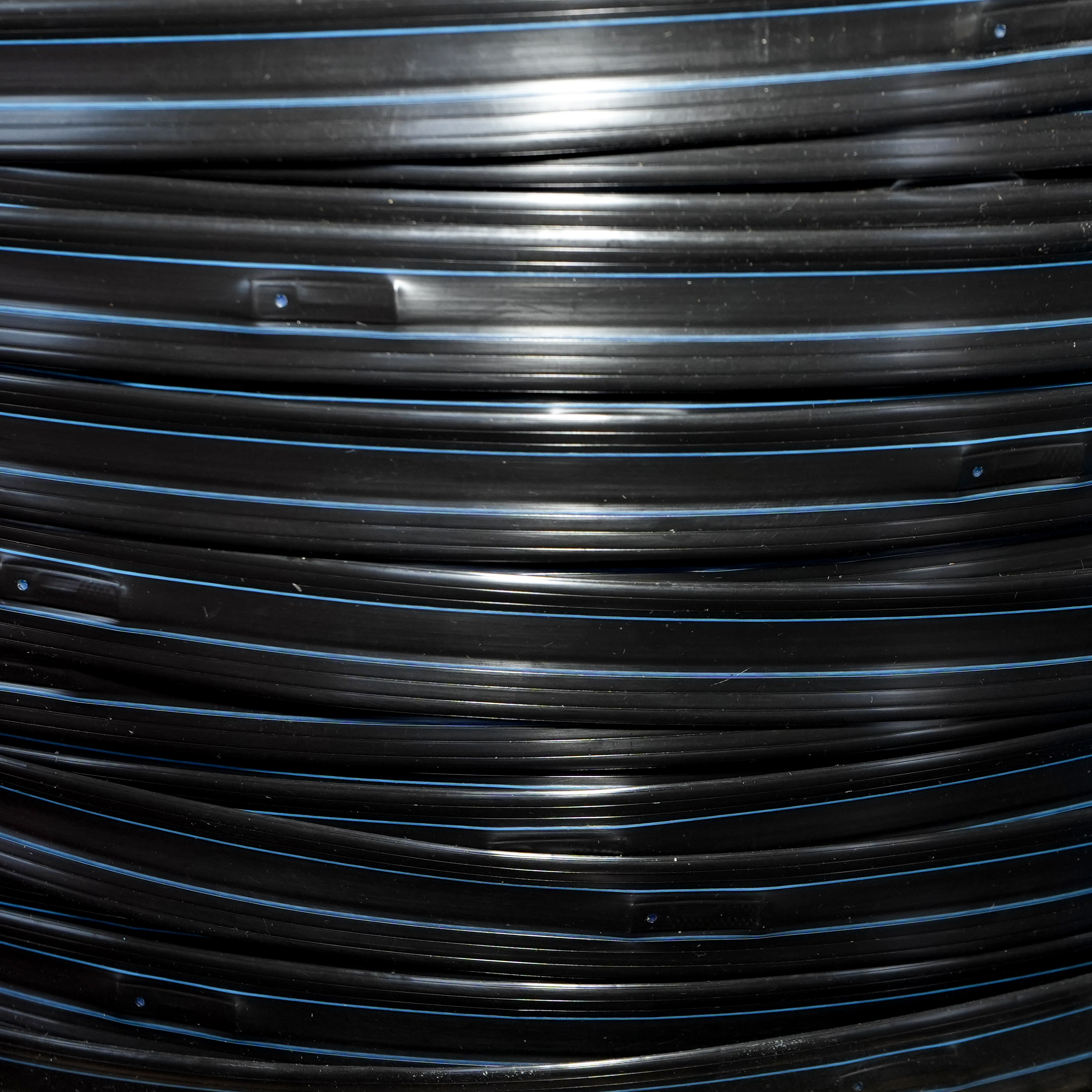

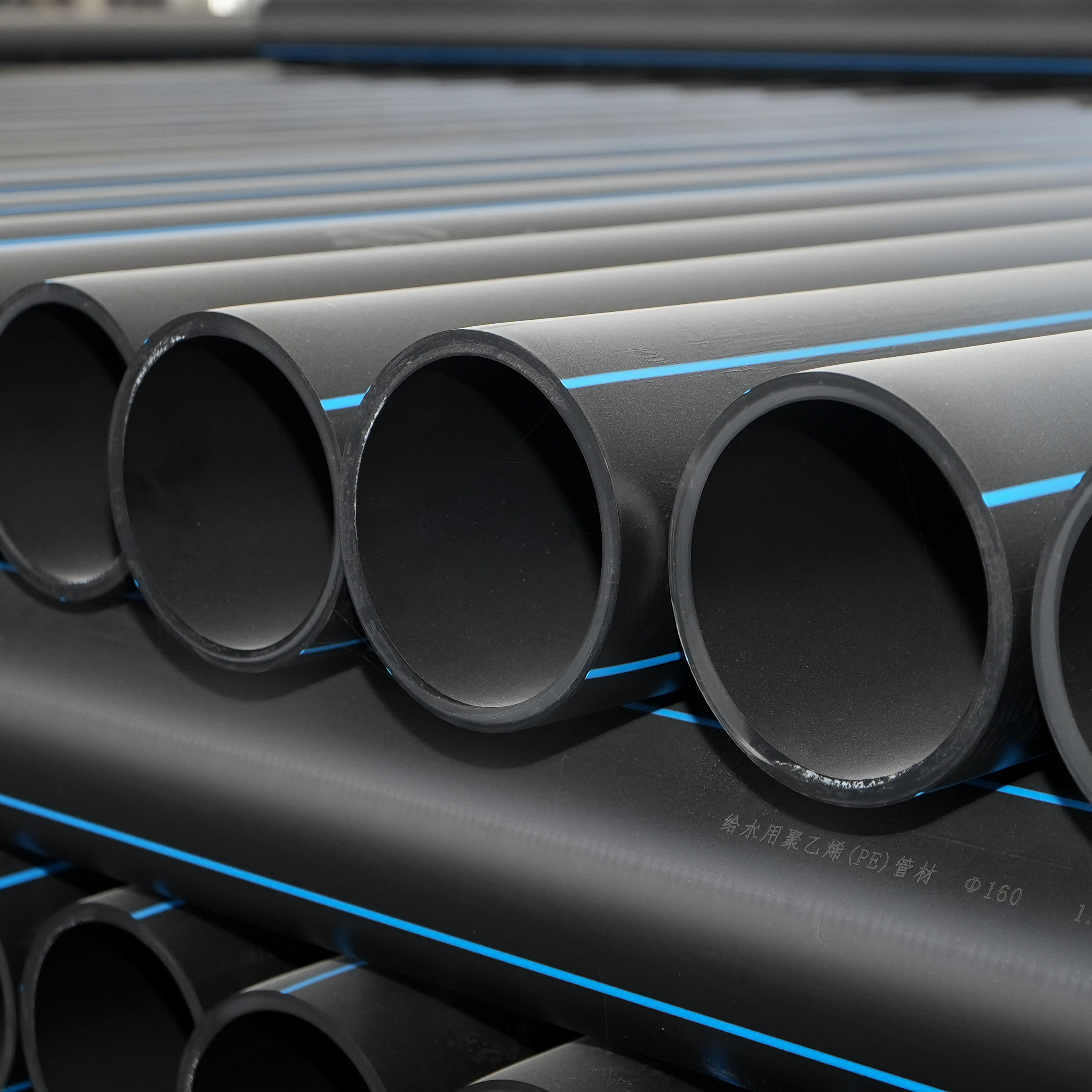

To optimize site operations, we engineer customized packaging and logistics strategies. Smaller diameters (≤63mm) are tightly wound into 50 to 100-meter coils, bound securely to prevent unspooling during transit. Larger profiles (≥75mm) are delivered as straight lengths, stacked and strapped with protective dunnage to eliminate surface abrasion, drastically improving handling efficiency upon delivery.
For the installation phase, we supply standardized technical guidance for both buried and above-ground laying. The inherent resilience of the PE material means no secondary anti-corrosion wrapping or cathodic protection is required. This drastically accelerates trench work, lowers installation difficulty, and minimizes long-term maintenance budgets. All deliveries are accompanied by complete certification documents and test reports, facilitating immediate project acceptance.
A: Our CE-marked conduits are scientifically formulated and tested to deliver a minimum 50-year operational lifespan under standard EN 12201 conditions. Uncertified alternatives lack this documented thermal and pressure stability, frequently leading to premature stress cracking, costly trench excavations, and unexpected network failures.
A: Absolutely. The inherent chemical resistance and structural flexibility make it exceptionally suited for direct burial. It easily absorbs ground movement and resists soil-borne corrosive elements. Unlike metallic counterparts, it requires no protective sleeves, tar coatings, or complex trench bedding, streamlining the entire civil engineering workflow.
A: We supply a comprehensive inventory of compatible PE fittings—including elbows, tees, and reducers—all manufactured to the same exacting EN 12201 specifications. These fittings share the identical PE100/PE80 material grades and CE certifications, ensuring that every fusion joint maintains the exact same pressure rating, sealing integrity, and hygienic safety as the main pipeline.
