The Flexible Coiled PE Water Pipe represents a paradigm shift in fluid conveyance, engineered specifically for projects demanding both structural integrity and exceptional maneuverability. Extruded from premium PE80/PE100 grade high-density polyethylene (HDPE) and medium-density polyethylene (MDPE), this piping solution features a dense, solid-wall construction that feels incredibly sturdy to the touch while maintaining a remarkable pliability. The optimized molecular chain branching allows the conduit to be repeatedly coiled and uncoiled without suffering permanent deformation or stress cracking. Available in standard fixed lengths of 100m and 200m, it directly addresses the persistent challenges of frequent splicing and the associated leakage vulnerabilities inherent in rigid, straight-pipe alternatives. Designed for low-pressure water transport (0.4–1.0MPa) scenarios, the smooth internal bore significantly reduces friction, ensuring optimal hydraulic performance over long distances. With optional UV stabilizers integrated into the outer wall, it easily withstands prolonged sun exposure. Its continuous, uninterrupted laying performance makes it an indispensable asset for agricultural irrigation, municipal water networks, and temporary fluid routing across challenging, undulating topographies.
Engineered to meet stringent international testing standards, our coiled polyethylene piping ensures reliable performance across diverse environmental conditions. The following technical parameters detail the precise material composition, pressure ratings, and dimensional specifications that make this product a dependable choice for fluid management systems.
Technical Index | Specification |
Material | PE80/PE100 HDPE/MDPE |
Standard Coil Length | 100m/200m (customizable) |
Pipe Diameter Range | 20mm–75mm |
Nominal Pressure Rating | PN4–PN10 (0.4–1.0MPa) |
Working Temperature Range | -20℃ to 60℃ |
Connection Methods | Electrofusion socket, rubber ring socket, quick connector |
Wall Structure | Solid wall |
UV Resistance | Optional UV stabilizer added |
A standard 200m spool of our Flexible Coiled PE Water Pipe requires merely one or two connection points. In stark contrast, covering the exact same distance with conventional rigid straight PE pipes necessitates up to 33 individual joints. This drastic reduction in splicing not only slashes labor hours and installation complexity but fundamentally eliminates the primary failure points where water leakage typically occurs. By minimizing mechanical joints, project managers can ensure a highly secure, continuous flow that preserves valuable water resources and reduces long-term maintenance overhead.
The inherent pliability of this polyethylene conduit allows it to navigate complex topographies with absolute ease. Whether routing through steeply terraced mountain fields, winding around natural obstacles in scattered agricultural plots, or conforming to the uneven trenches of a municipal repair site, the pipe bends naturally without the need for supplementary elbow fittings. This exceptional flexibility ensures an uninterrupted layout that rigid alternatives simply cannot match, saving procurement costs for angular fittings and significant installation time.

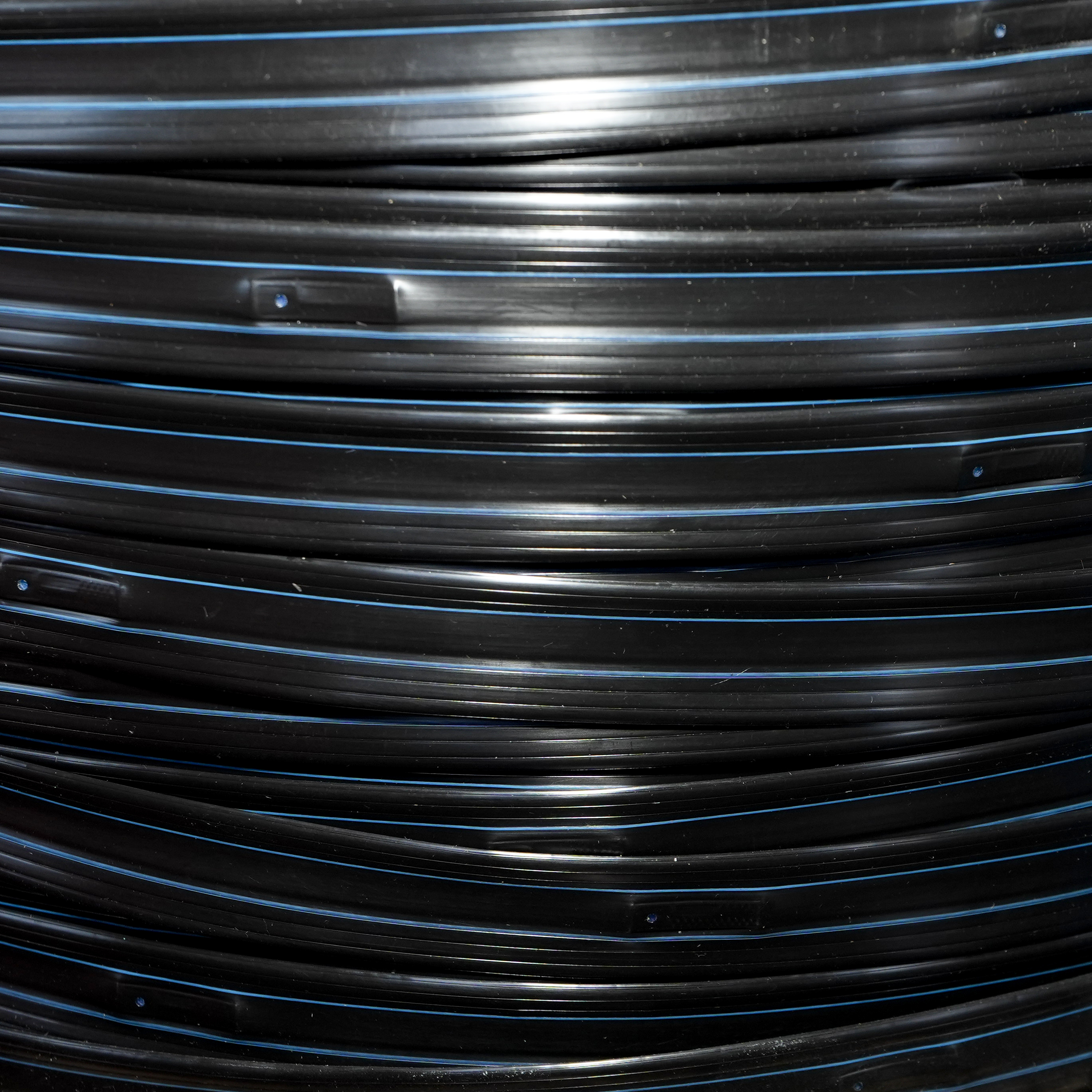

The coiled architecture transforms a lengthy, cumbersome pipeline into a compact, tightly wound spool. This geometric efficiency dramatically reduces the physical footprint required for storage, eliminating the need for specialized elongated racking systems. Furthermore, the optimized coil dimensions are specifically engineered to maximize the loading capacity of standard shipping containers, significantly driving down cross-border freight costs. Upon arrival, the spools can be swiftly deployed and unrolled directly into trenches, boosting on-site operational efficiency by over 50%.
Formulated to endure severe environmental fluctuations, the pipe maintains its structural integrity across a broad thermal spectrum. It actively resists brittle fracture in freezing conditions down to -20℃, ensuring winter durability, while retaining its pressure-bearing stability in scorching summer environments up to 60℃. This thermal resilience guarantees a consistent, reliable water supply regardless of shifting climate zones or drastic seasonal changes.
Utilizing an advanced extrusion process, the internal bore of the pipe is exceptionally smooth, presenting a nearly frictionless surface to the flowing water. This specialized inner wall craftsmanship drastically reduces hydraulic resistance, promoting a more efficient, high-velocity fluid transfer over extended distances. Additionally, the ultra-smooth finish actively repels mineral deposits and biological buildup, effectively preventing internal scaling and maintaining the pipe's original flow capacity throughout its entire operational lifespan.
To guarantee the absolute integrity of the entire water network, we provide a full suite of perfectly matched connection accessories. Whether your project demands the permanent security of electrofusion and rubber ring sockets or the rapid deployment capabilities of quick-connect fittings, our comprehensive solutions ensure flawless integration. This holistic approach guarantees overall system tightness, simplifies the assembly process, and empowers construction crews to execute accurate installations with minimal specialized training.
The adaptable nature of this coiled PE water pipe makes it an indispensable component across a multitude of low-pressure fluid conveyance projects. In the agricultural sector, it functions as the resilient backbone for drip and micro-sprinkler irrigation networks, delivering precise hydration to expansive farmlands, commercial greenhouses, and sprawling orchards. For municipal authorities, it acts as a critical temporary bypass channel during emergency water main repairs, ensuring uninterrupted domestic supply while infrastructure is upgraded. Real-world case studies from complex mountainous regions demonstrate its unparalleled efficacy in rural drinking water safety projects, successfully bridging vast, uneven distances where traditional piping failed. Furthermore, it is heavily utilized in urban landscaping, providing reliable irrigation for park green spaces and villa courtyards. During critical disaster relief operations—such as droughts or floods—the rapid uncoiling and deployment capabilities of this pipe allow emergency response teams to establish temporary life-saving water lines in a fraction of the usual time, proving its worth as a highly dependable engineering solution.

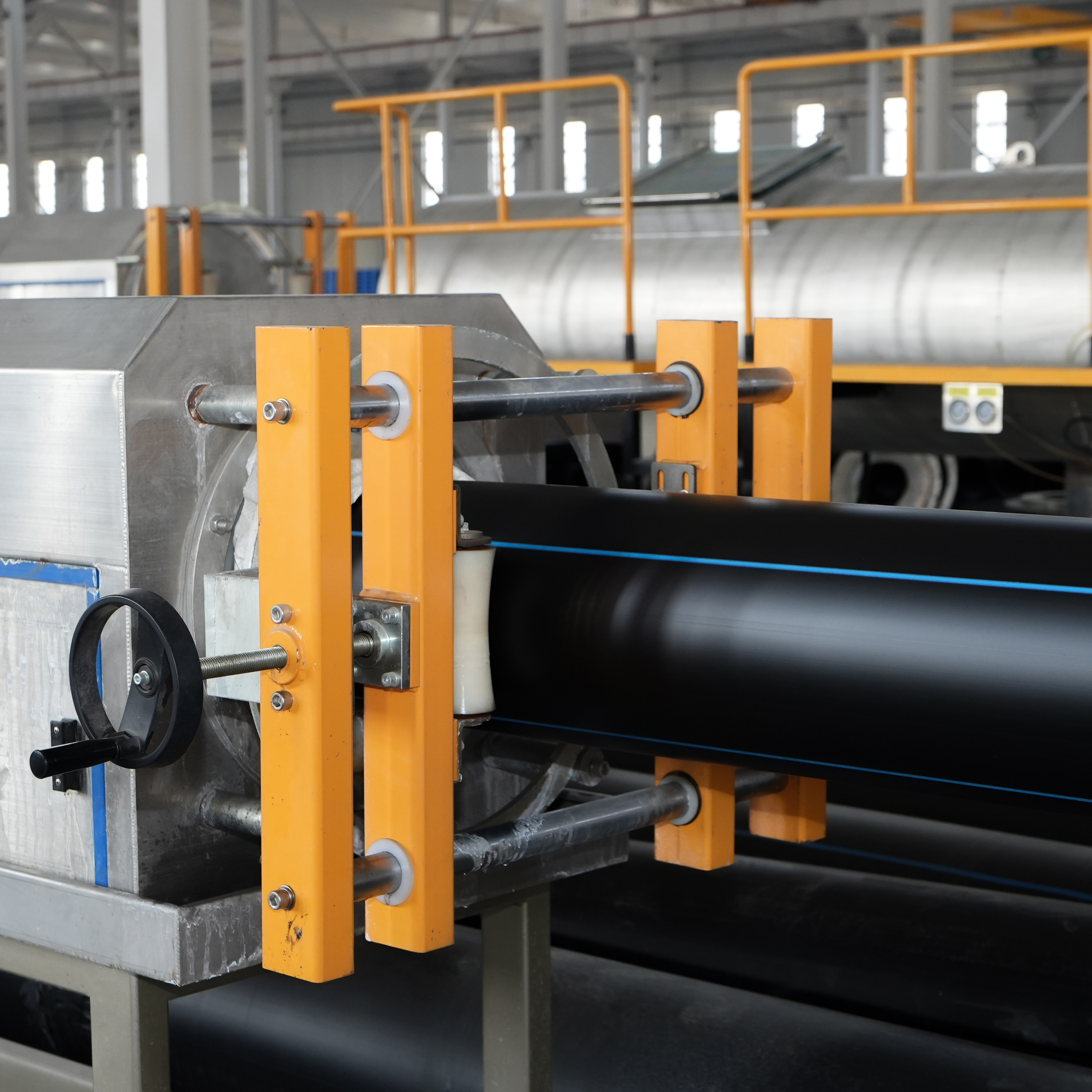

Our manufacturing philosophy is anchored in rigorous quality control and a deep commitment to meeting specific project requirements. Every meter of our Flexible Coiled PE Water Pipe undergoes strict raw material screening and precise extrusion monitoring to guarantee uniform wall thickness and unwavering mechanical strength. The optimized molecular chain design guarantees no obvious deformation after repeated coiling and uncoiling.
A1: The sizing parameters are intentionally engineered to maximize maneuverability. Larger diameter pipes naturally possess an excessive degree of rigidity, which creates significant resistance during the coiling process. This stiffness directly contradicts the core flexible design philosophy of this specific product line. By strictly maintaining the diameter range between 20mm and 75mm, we ensure the conduit retains its optimal pliability. This specific sizing sweet spot is proven to be the most effective for low-pressure, decentralized water supply scenarios, allowing field crews to easily handle, unroll, and route the piping around obstacles without the need for heavy machinery.
A2: For temporary engineering applications, quick connectors are unequivocally the superior choice. These specialized fittings are designed for rapid, tool-minimal assembly and equally swift disassembly, drastically reducing labor time on site. As temporary projects—such as active construction zones, seasonal agricultural setups, or emergency municipal pipeline repairs—frequently evolve, the layout of the water network must adapt accordingly. Quick connectors empower site managers to seamlessly reroute, extend, or dismantle the pipeline infrastructure in tandem with the project's progression, offering a level of operational agility that permanent fusion methods simply cannot provide.
