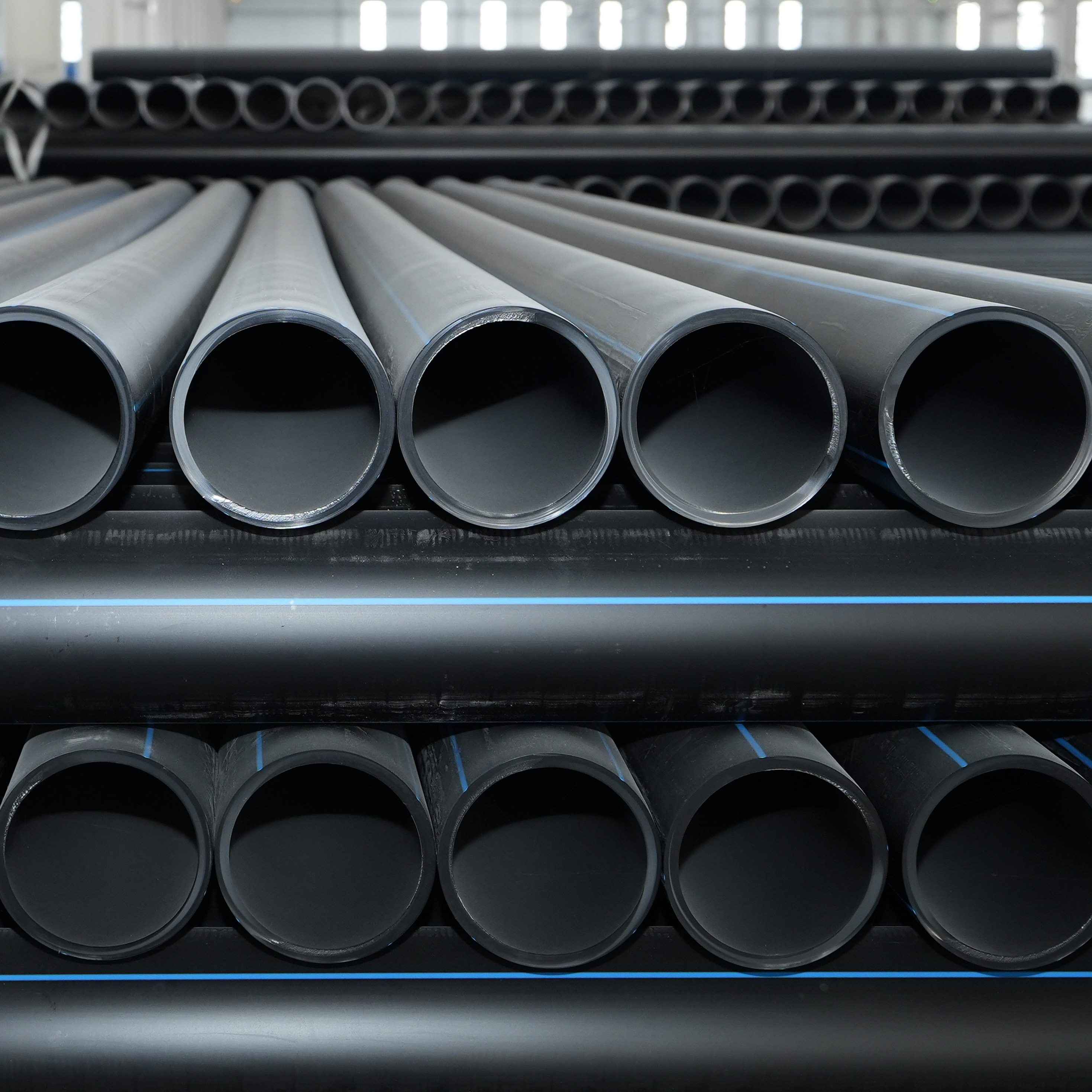

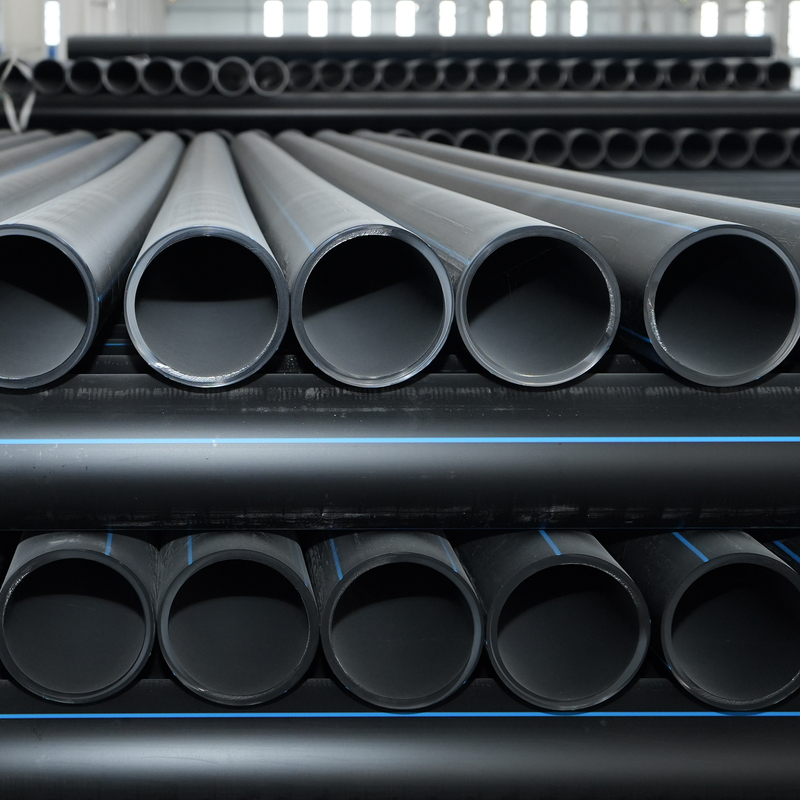

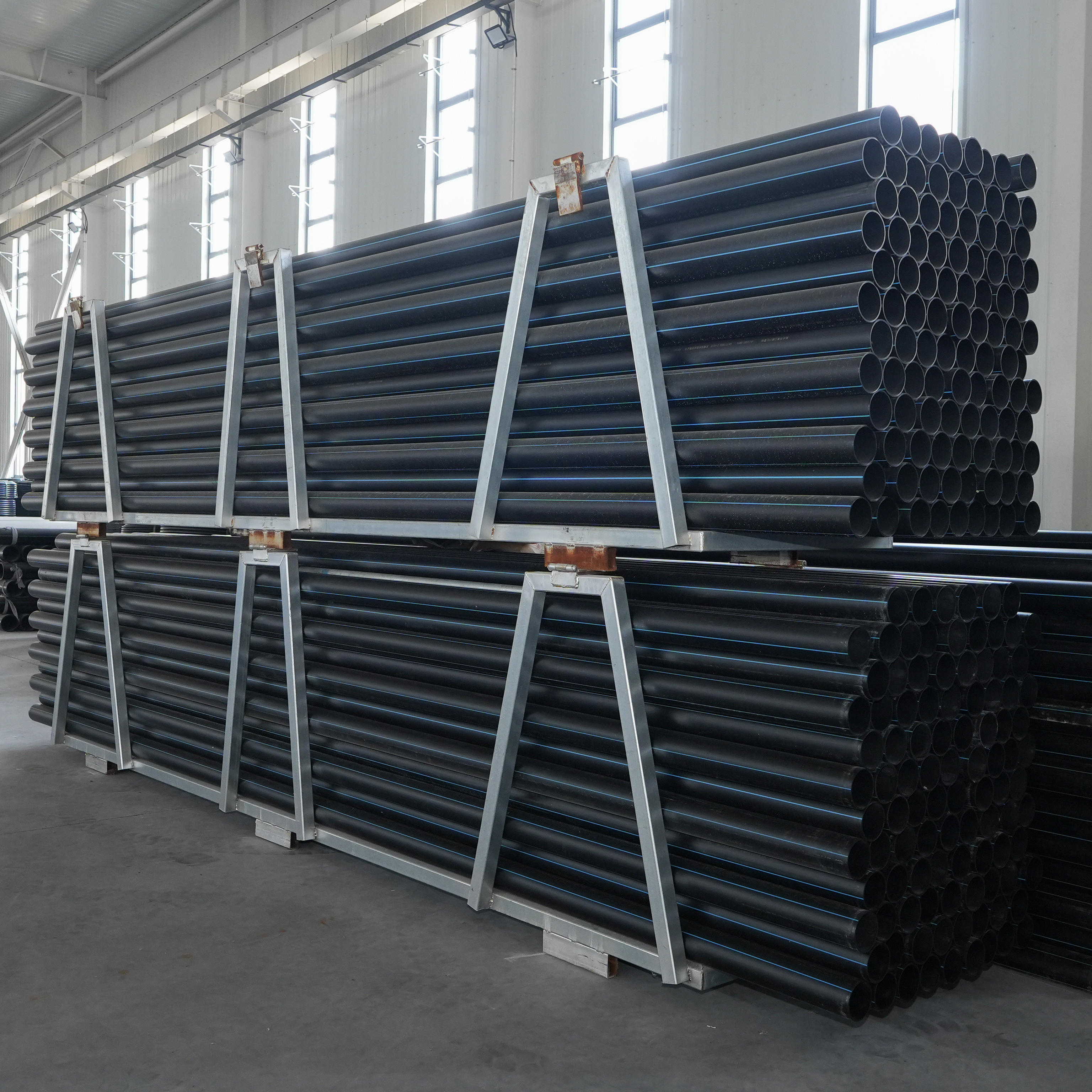

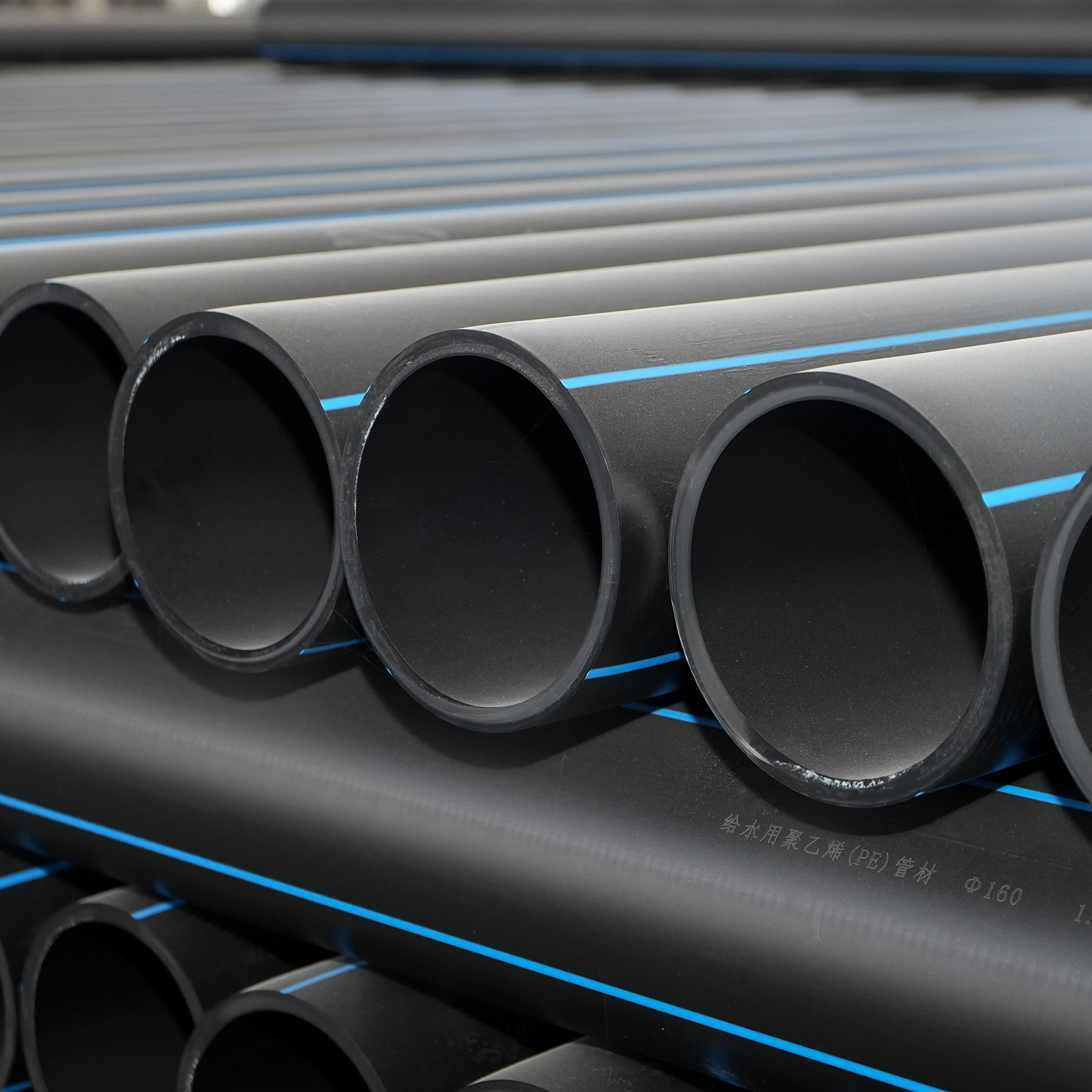

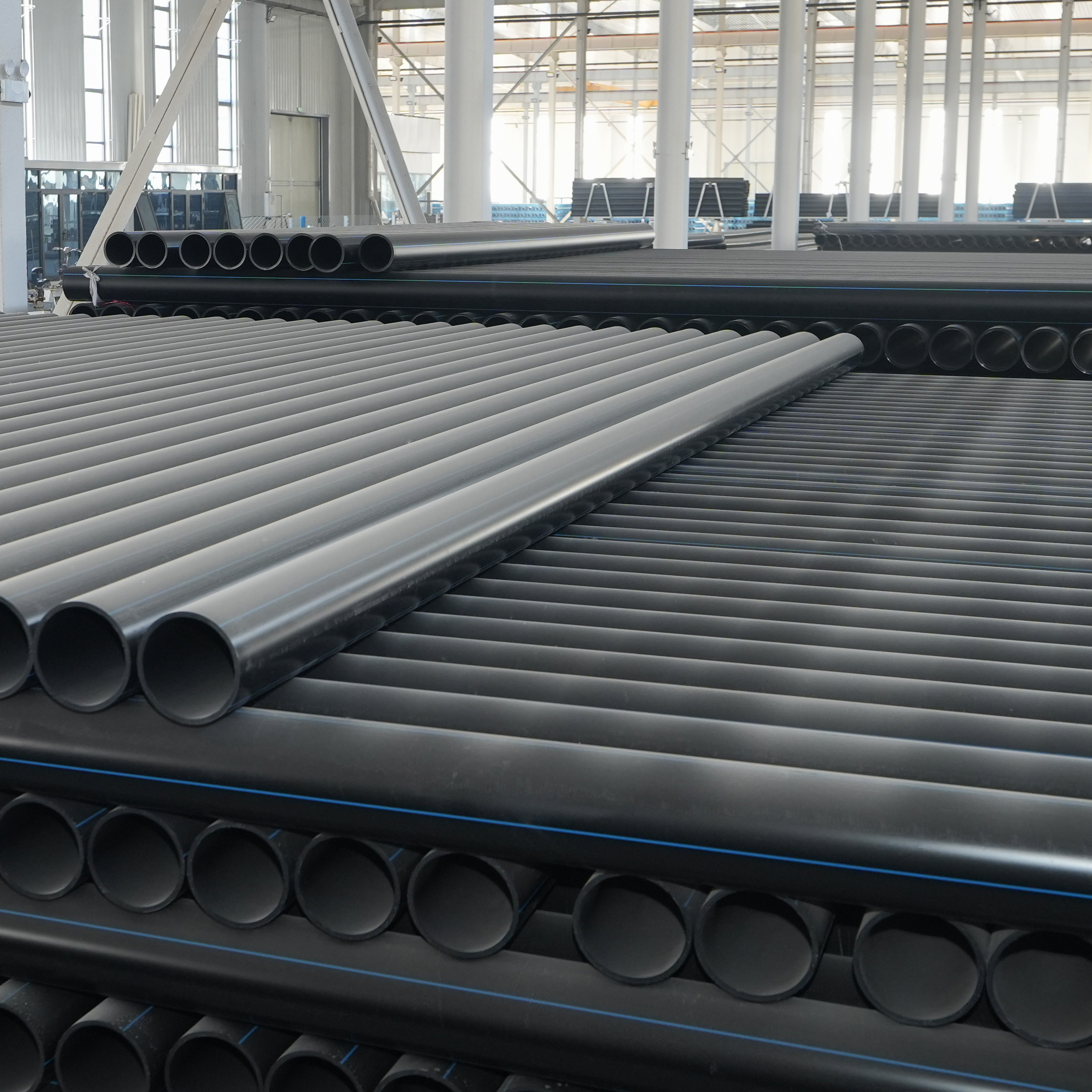

PE100 HDPE Pipe is a third-generation high-density polyethylene piping material with a minimum required strength (MRS) of 10MPa, certified for 50+ years of safe service at 20℃. Engineered with high crystallinity and a dense molecular network, this corrosion-resistant PE100 HDPE Pipe delivers superior toughness, rigidity and durability, making it the top choice for global municipal water supply, gas transmission and drainage engineering projects. Compliant with ISO 4427, ASTM D3350 and EN 12201 international standards, it outperforms PE80 and traditional metal/concrete pipes in performance, cost-efficiency and sustainability.
Performance Category | Key Parameter | Technical Spec | Core Buyer Value |
Mechanical Properties | Minimum Required Strength (MRS) | 10MPa | Higher structural stability than PE80 |
Mechanical Properties | Tensile Yield Strength | 20% higher than PE80 | Strong fracture/scratch resistance |
Mechanical Properties | Elastic Modulus | 1250MPa | 30% higher rigidity than standard HDPE |
Pressure Resistance | Max Working Pressure | 2.0MPa | Thinner wall at same pressure, material saving |
Thermal Resistance | Operating Temperature Range | -60℃ ~ 60℃ | Reliable use in extreme cold/heat |
Thermal Resistance | Short-term Heat Resistance | Up to 110℃ | Adapt to temporary high-temperature media |
Chemical Resistance | pH Adaptability | 1-14 | Resists all common chemical media corrosion |
Hydraulic Performance | Inner Wall Friction Coefficient | 0.009 | No scaling, 30% higher water transport capacity |
Durability | UV Resistance | 2-2.5% uniform carbon black | No aging for outdoor long-term use |
Basic Property | Material Density | 0.940-0.965 g/cm³ | High crystallinity, excellent toughness |
For specific engineering needs, PE100 HDPE Pipe has two upgraded variants with enhanced performance: PE100-RT supports continuous high-temperature operation up to 95℃, suitable for hot water supply projects; PE100-RC has an environmental stress crack resistance (ESCR) of over 1000 hours, effectively resisting sharp point loads and rock impingement in underground laying.

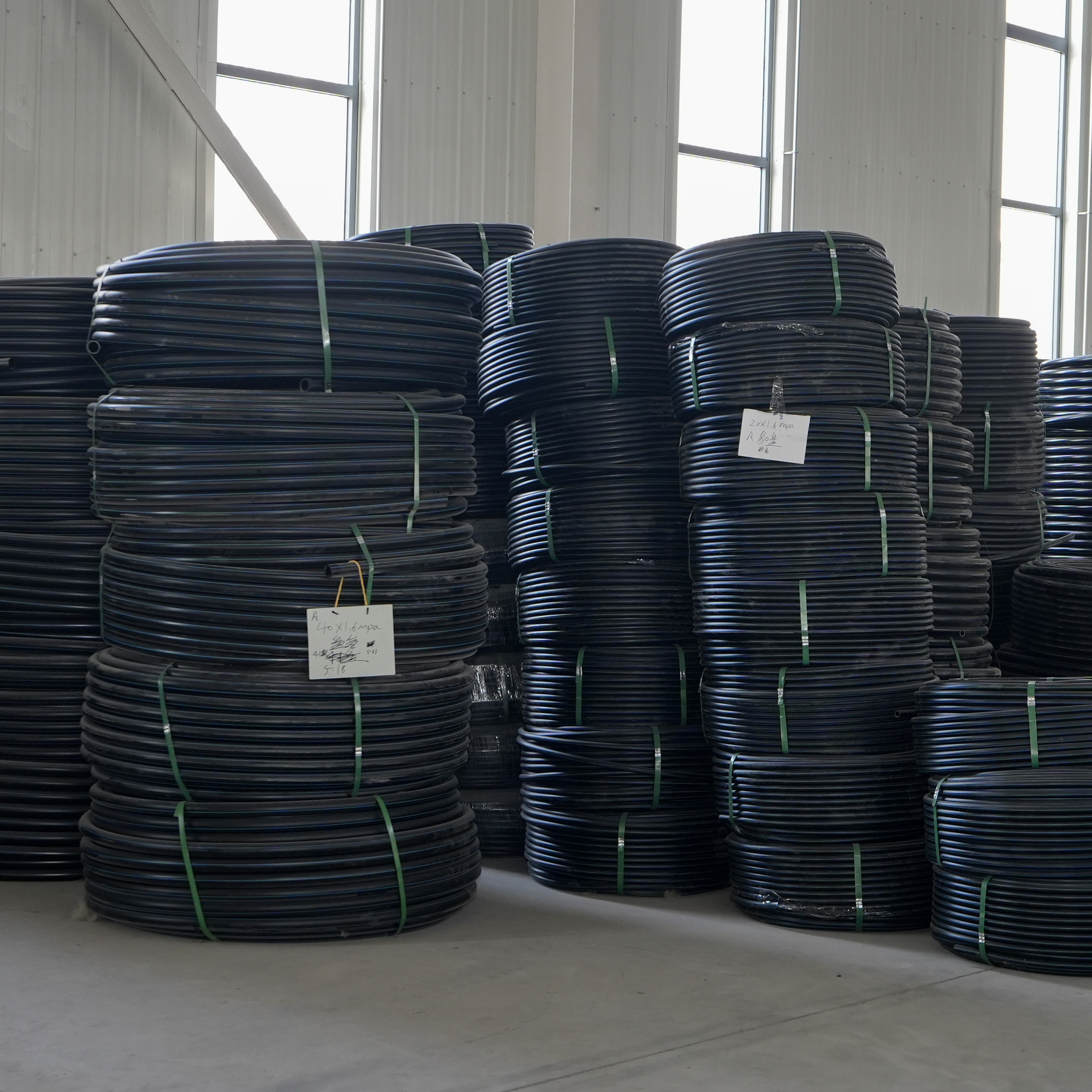

PE100 HDPE Pipe adopts heat fusion/electrofusion connection technology, with joint strength higher than the pipe body, forming an integrated leak-proof system and eliminating engineering rework risks. With an elongation at break >300%, it adapts to uneven ground foundations, resisting settlement and torsional deformation in earthquake and typhoon zones. Weighing only 1/8 of steel pipes and 1/10 of concrete pipes, small-diameter PE100 HDPE Pipe can be supplied in coils, suitable for trenchless construction (pipe jacking, horizontal directional drilling) and cutting construction time by 30%.
At the same pressure rating, the wall thickness of PE100 HDPE Pipe is 25-35% thinner than PE80, reducing raw material costs significantly. Its inherent corrosion and rust resistance eliminates the need for anti-corrosion treatment, cutting maintenance costs by 80%+. The ultra-smooth inner wall reduces fluid resistance, lowering pump energy consumption for long-term operational savings. As a food-grade material, it is non-toxic and odorless, avoiding drinking water secondary pollution and meeting global potable water sanitary standards.
PE100 HDPE Pipe is 100% recyclable, with a low-carbon production process that consumes less energy than traditional pipe manufacturing. It is 4-7 times more wear-resistant than steel pipes, suitable for transporting sand and stone-containing fluids in drainage and mining projects without pipe damage. The carbon black formula ensures no performance degradation from long-term UV exposure, supporting outdoor storage and on-site use without additional protection.
PE100 HDPE Pipe is widely used in municipal potable water supply, underground high-pressure gas transmission, industrial and domestic drainage, sewage treatment and mine slurry transportation projects. Its high pressure resistance and leak-proof connections make it the first choice for urban gas pipeline networks (up to 1.0MPa). The trenchless construction compatibility is perfect for urban renewal projects where open excavation is not feasible. Its extreme low-temperature resistance also suits water supply projects in northern cold regions, ensuring stable operation in winter.
Our PE100 HDPE Pipe supports customized production of different diameters and wall thicknesses to meet the specific requirements of various engineering projects, with professional bulk order support and free on-site technical guidance for fusion connection. We provide a 50-year quality warranty for normal use, and all products undergo strict factory pressure and crack resistance testing before delivery, with complete certification documents. Our engineering team can provide one-stop piping solutions, covering material selection, laying design and construction guidance, serving projects in more than 20 countries and regions worldwide.
A: Yes, we offer full customization for PE100 HDPE Pipe, including different outer diameters, wall thicknesses and lengths. We also provide customized upgraded grades (PE100-RT/PE100-RC) for hot water supply or harsh underground laying scenarios.
A: The main connection methods for PE100 HDPE Pipe are heat fusion and electrofusion, both creating joints with strength higher than the pipe body to form a 100% leak-proof integrated system. We provide free technical guidance for on-site connection construction.
A: We provide a 50-year quality warranty for PE100 HDPE Pipe under normal working conditions. For bulk project orders, we also offer free on-site construction support and post-sales follow-up to solve any use problems.
A: All our PE100 HDPE Pipe products are certified to ISO 4427, ASTM D3350 and EN 12201 international standards, with CE certification for the EU market. Complete certification documents are provided for all orders to meet local engineering acceptance requirements.
A: Absolutely. Besides potable water and natural gas, PE100 HDPE Pipe is suitable for transporting domestic sewage, industrial wastewater, mine slurry and low-concentration chemical media (pH 1-14) due to its excellent corrosion and wear resistance.
Whether for large-scale municipal engineering, industrial projects or small-scale residential water supply, PE100 HDPE Pipe delivers unbeatable performance, cost-efficiency and long-term reliability. Inquire now for a free technical spec sheet and wholesale price quote—our professional team will reply to your project needs in time!
