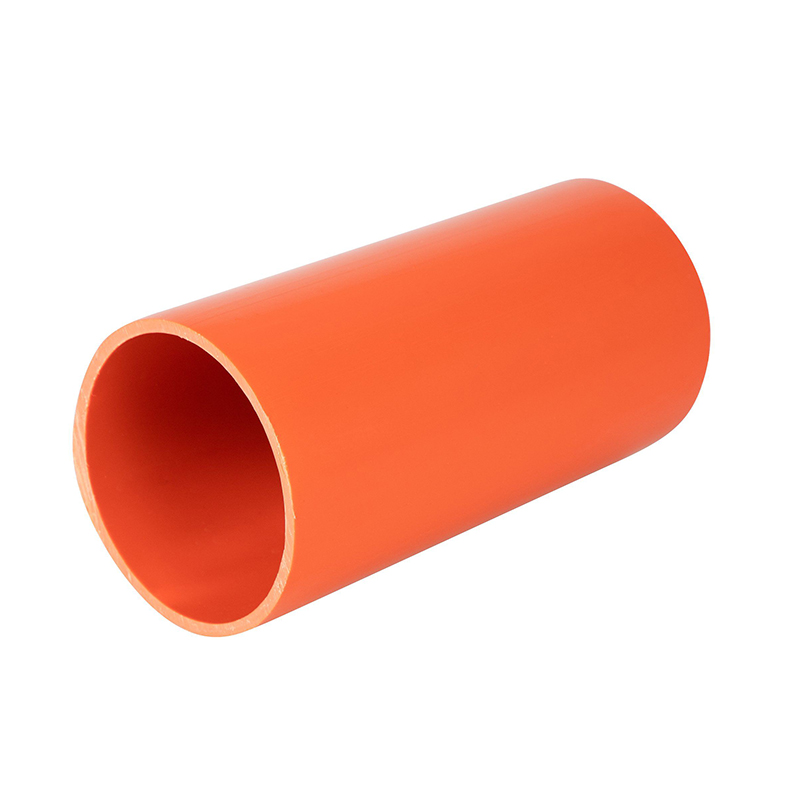

CPVC power pipe is a hard, straight and solid-walled pipe. Its inner and outer walls are smooth and flat, and it is orange-red in color, bright and eye-catching. It has high mechanical strength at high temperatures and is suitable for pressure applications. The operating temperature can reach up to about 90℃, the service life can reach 50 years, and it is safe and simple. It is flame-retardant, fireproof, has low thermal conductivity, causes less heat loss in pipelines, and has low installation costs. It is a green building material.
| Quantity: | |
|---|---|
CPVC Power Pipe serves as an advanced, solid-walled conduit engineered specifically for safeguarding electrical cables in demanding infrastructure and grid transmission projects. Manufactured from specialized chlorinated polyvinyl chloride resin, this conduit presents a distinct, bright orange-red exterior that immediately alerts excavation crews to the presence of buried electrical lines, significantly reducing accidental strikes. Upon physical inspection, the inner walls feel exceptionally slick to the touch—a deliberate manufacturing choice designed to eliminate friction drag. As heavy electrical cables are pulled through long underground runs, this smooth interior prevents the outer cable jackets from scraping or tearing. Recognized widely as an environmentally responsible building material, it provides a dependable alternative to heavy metal or concrete conduits, blending structural rigidity with the practical flexibility required for complex underground routing.
The fundamental architecture of the CPVC Power Pipe is defined by its extraordinary thermal stability and mechanical endurance under continuous stress. Unlike standard plastics that soften under electrical load heat, this material maintains its rigid cylindrical shape even when surrounding soil temperatures fluctuate wildly. It actively resists degradation from long-term exposure to subterranean moisture and reactive soil compounds. Safety remains the primary engineering focus; the conduit features inherent self-extinguishing characteristics, meaning it will not sustain a flame once the primary fire source is removed, thereby localizing any potential electrical fires. Furthermore, its manageable weight profile allows installation crews to maneuver long sections manually, accelerating project timelines and reducing the physical strain associated with laying heavy-duty utility lines.
Number | Project | Technical indicators |
1 | Density (kg/ m ⊃2;) | 1450 |
2 | Coefficient of friction | ≤0.33 |
3 | Volume resistivity Ω·cm | ≥1×10⊃1;⊃3; |
4 | Vicat softening temperature: ℃ | ≥93 |
5 | Drop hammer impact | 10/10 No rupture |
6 | Flat experiment | No rupture |
7 | Ring stiffness (kn/m²) | ≥8 |
8 | Vertical retraction rate (%) | ≤5 |
9 | Flame retardant performance | It self-extinguishes when removed from the fire te≤30s |
10 | Withstand voltage test | ＞30kv |
The physical composition of the CPVC Power Pipe radically alters the logistics of utility construction. Because the material is exceptionally lightweight compared to concrete or cast iron, logistics teams can transport larger volumes per truckload, and on-site workers can manually position the conduits without relying on heavy cranes or lifting machinery. Crucially, this piping system is fully compatible with modern trenchless construction technologies, such as horizontal directional drilling. This compatibility means contractors can lay underground utility networks beneath busy urban intersections or protected landscapes without excavating deep trenches, thereby preventing road destruction and minimizing traffic disruption. The expanded bell-end socket connection system, utilized alongside engineered modular brackets, creates a tight, secure seal in minutes. This accelerated assembly directly translates into fewer labor hours and faster project handovers.
When transmitting high-voltage electricity, cables inevitably generate substantial thermal output. CPVC Power Pipe is specifically formulated to absorb and dissipate this heat while maintaining its structural integrity. It easily handles Vicat softening temperatures of ≥93℃ without warping or collapsing inward. For critical grid security, the conduit delivers quantifiable safety metrics: it passes a rigorous withstand voltage test of ＞30kv, providing a massive insulation barrier between live wires and the surrounding earth. In the event of an electrical short or external fire, the material meets strict flame-retardant standards (such as FV-0). It physically reacts to direct flame by charring rather than melting, and it self-extinguishes in under 30 seconds (te≤30s) once the flame is removed. This containment capability prevents localized sparks from escalating into extensive infrastructure fires.
Underground environments subject materials to constant chemical and biological attacks. This conduit exhibits extreme chemical defense, boasting outstanding resistance to harsh acids, highly alkaline soils, and corrosive salt environments typical of coastal or heavy industrial zones. Whether buried in acidic marshlands or alkaline urban fill, the pipe resists molecular breakdown, ensuring decades of uninterrupted service life. As a designated green building material, the extrusion process avoids heavy metal stabilizers that could leach into groundwater. By extending the replacement cycle from years to decades, it drastically reduces the lifetime carbon footprint of utility networks, aligning perfectly with municipal mandates for sustainable, low-impact infrastructure development.
Evaluating the true cost of utility piping requires looking beyond the initial purchase price. The CPVC Power Pipe delivers a compelling financial model for large-scale procurement. By eliminating the need for specialized welding crews, heavy trenching equipment, and prolonged street closures, the day-one installation expenses drop dramatically. Furthermore, its immunity to soil-borne corrosion and root intrusion means municipal maintenance departments spend significantly less time and budget on emergency excavations and line repairs. For engineering firms and procurement directors managing tight budgets, this conduit represents a highly predictable investment that secures the electrical grid while protecting the project's bottom line.
Beneath any modern city lies a dense, chaotic web of utilities. CPVC Power Pipe serves as the primary protective artery for urban power grid construction and renovation. In densely populated commercial districts where electrical loads are immense, these pipes shield primary feeder cables from the constant vibration of heavy surface traffic and the shifting of urban soil. During municipal renovation projects—such as widening boulevards or relocating overhead lines underground to improve city aesthetics—the bright visual profile of the conduit helps future excavation teams identify and avoid live power lines instantly.
Within newly planned engineering parks and residential areas, reliable electricity delivery is the foundation of daily operations. Developers utilize these conduits to route main power lines from regional substations directly into residential complexes and manufacturing facilities. The modular nature of the piping system allows it to navigate the complex topographies of large-scale industrial parks, routing safely around water mains and foundational structures while ensuring the high-voltage cables inside remain entirely insulated from external moisture and ground pressure.
Critical transportation hubs operate on zero-tolerance policies for power failures. In transportation, road, and bridge engineering, these pipes are embedded into concrete bridge decks or buried alongside highways to protect the cables powering automated traffic signals, tolling sensors, and continuous street lighting. Similarly, in civil aviation airport engineering construction, the conduits are trusted to protect the vital electrical lines running beneath runways and taxiways, where they must withstand the immense, repetitive compressive forces generated by landing aircraft while enduring extreme seasonal temperature swings.
The physical geometry of the CPVC Power Pipe relies on a solid-walled extrusion technique that maximizes hoop strength (Ring stiffness ≥8 kn/m²) to resist crushing from soil loads. The interior surface is engineered to be exceptionally smooth to prevent cable jacket abrasion. To ensure optimal performance and prevent overheating, scientific selection guidelines dictate that the inner diameter of the chosen conduit should be at least 1.5 times the outer diameter of the enclosed electrical cable. This precise spatial allowance guarantees adequate airflow for heat dissipation and provides enough clearance for smooth, tension-free cable pulling during installation.
Manufactured from modified chlorinated polyvinyl chloride, the material matrix is specifically formulated to prioritize electrical insulation and thermal endurance. The resin compound achieves a volume resistivity of ≥1×10⊃1;⊃3; Ω·cm, acting as an impenetrable barrier against electrical leakage. Furthermore, the material undergoes intense drop hammer impact testing (10/10 no rupture) and flat compression experiments to ensure it will not crack or splinter when subjected to sudden physical shocks, such as rocks shifting in the trench backfill. Its non-toxic formulation guarantees that no harmful chemicals leach into the surrounding ecosystem over its operational lifespan.
Flexibility in the field is a core design principle. The conduit integrates flawlessly with standard flared socket connection methods, allowing lengths to be joined rapidly with industrial adhesives or rubber sealing rings for watertight performance. The exterior dimensions are standardized to fit seamlessly into multi-tier modular brackets, enabling contractors to stack multiple conduits neatly in a single trench. Because the material can be cut to length with standard hand tools rather than specialized cutting torches, teams can easily adapt to unexpected underground obstacles, routing the conduit efficiently through tight utility corridors.
Securing materials for extensive infrastructure projects requires a manufacturing partner with proven capacity. Operating multiple large-scale, automated extrusion lines, our facilities are structured to handle massive production volumes with consistent output. Decades of export experience mean that logistics, packaging, and international shipping protocols are finely tuned, ensuring that bulk orders arrive at global construction sites on schedule, preventing costly project delays caused by material shortages.
Every batch of conduit undergoes rigorous evaluation in a dedicated, professionally equipped testing laboratory before leaving the facility. Operating under strict ISO international quality management systems, the production process monitors everything from raw material viscosity to final product ring stiffness and voltage resistance. This data-driven approach to quality control guarantees that every pipe delivered meets or exceeds global electrical safety and structural standards, providing absolute peace of mind for engineering directors.
Understanding that complex engineering environments often require specific solutions, comprehensive OEM and ODM services are available. Procurement teams can request tailored modifications to the conduit's specifications, including customized wall thicknesses for extreme load-bearing areas, specific pipe lengths to match trenching equipment, or alternative color-coding to align with regional utility identification laws. This flexible manufacturing approach ensures the product perfectly matches the exact technical demands of any specialized project.
Yes, CPVC Power Pipe is engineered explicitly for subterranean environments. It possesses remarkable resistance to the corrosive effects of acidic or alkaline soils, moisture penetration, and the constant physical pressure of earth and surface traffic. The secure, leak-proof socket connections prevent groundwater and silt from entering the conduit, ensuring the enclosed electrical cables remain completely dry and protected for decades without requiring excavation for repairs.
As a recognized green building material, its production process is strictly controlled to exclude heavy metals and toxic plasticizers. Compared to manufacturing heavy concrete or smelting steel pipes, producing CPVC requires significantly less energy, resulting in a lower carbon footprint. Furthermore, because it does not degrade or leach chemical compounds into the surrounding soil or groundwater, it actively protects local ecosystems. Its extended service life also means less material waste over the lifespan of the utility network.
Absolutely. The material is formulated with a Vicat softening temperature of ≥93℃, allowing it to maintain its rigid structural integrity even when surrounding soils are heated by continuous high-voltage electrical transmission or intense geographical climates. In addition to resisting heat deformation, its inherent flame-retardant characteristics (self-extinguishing in under 30 seconds) provide a critical layer of fire safety in industrial facilities, power plants, and dense urban grids.
The primary advantage lies in its low material density. Being remarkably lightweight, it completely eliminates the need to rent heavy lifting cranes or specialized rigging equipment just to move the pipes into position. The intuitive socket connection design, which pairs easily with standardized modular brackets, allows workers to assemble long runs quickly by hand. Unlike steel, it requires no hazardous on-site welding, and unlike concrete, it requires no curing time, drastically reducing total labor costs and accelerating project completion.
