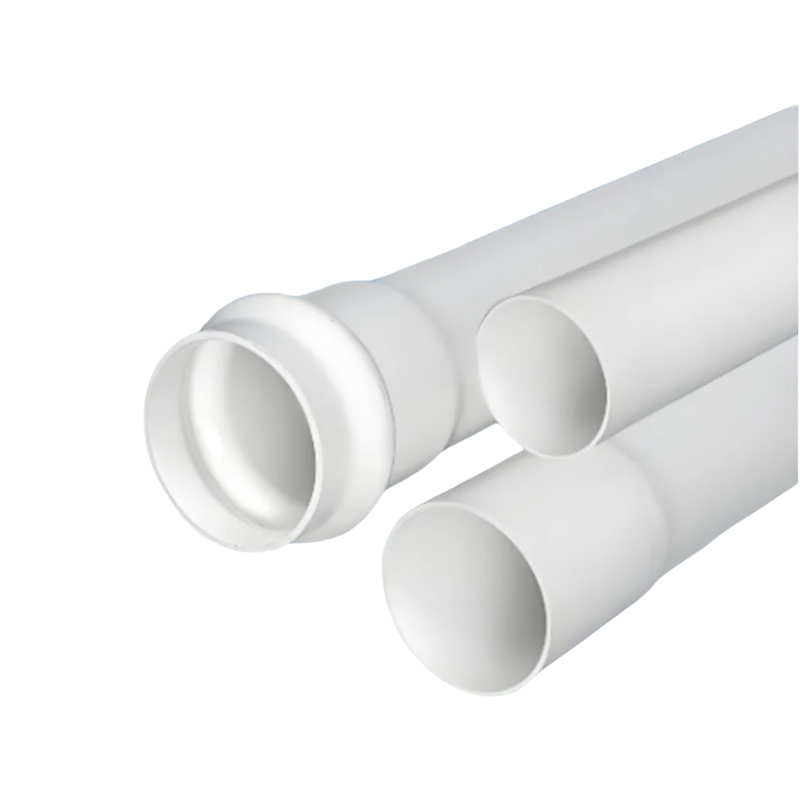

The PVC-U water supply pipe is mainly made of PVC resin, with the addition of special additives, and is formed by extrusion through an extruder. This pipe has good sealing at the interface, an attractive appearance, is sturdy and durable, and the material is hygienic, causing no pollution to water quality. The inner wall is smooth and has a large water transmission capacity. Corrosion-resistant, with a long service life, it is lightweight for convenient transportation and easy construction. It has excellent pressure resistance (0.1MPa-4.0MPa), can withstand temperatures ranging from -30℃ to +60℃, and will not harden or soften the pipe body due to changes in climate or usage temperature.
| Quantity: | |
|---|---|
UPVC Water Pipe (unplasticized polyvinyl chloride water pipe) is extruded from high-quality PVC resin with special additives. It features hygienic material, smooth inner walls, and exceptional durability, complying with the "Safety Evaluation Standard for Drinking Water Distribution Equipment and Protective Materials" (GB/T 17219).
This pipe boasts a nominal pressure range of 0.1MPa-4.0MPa and temperature resistance from -30℃ to +60℃. With a roughness coefficient of 0.008-0.009, it ensures low flow resistance, while its tensile strength at 23℃ is no less than 45MPa, guaranteeing structural stability.
Made of food-grade PVC resin without plasticizers. Its vinyl chloride monomer (VCM) content is below 5mg/kg, avoiding secondary water pollution and algae/bacteria growth.
Total lifecycle cost is over 40% lower than traditional metal pipes. No anti-corrosion treatment is needed, and maintenance costs are only 30% of cast iron or concrete pipes.
Low water transmission resistance cuts energy consumption by 15%-20%. Waste pipes are recyclable, aligning with low-carbon construction concepts.
Resists acids, alkalis, salts, and stray currents, suitable for complex environments like municipal buried projects. It offers a long service life without hardening or softening.
Nominal outer diameter DN/mm | Nominal wall thickness e/mm | ||||||
Standard size ratio | |||||||
SDR41 | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | |
Nominal pressure/MPa | |||||||
0.63 | 0.8 | 1.0 | 1.25 | 1.6 | 2.0 | 2.5 | |
50 | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | |
63 | 2.0 | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 |
75 | 2.3 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 |
90 | 2.8 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 |
110 | 2.7 | 3.4 | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 |
125 | 3.1 | 3.9 | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 |
140 | 3.5 | 4.3 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
160 | 4.0 | 4.9 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
180 | 4.4 | 5.5 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
200 | 4.9 | 6.2 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
225 | 5.5 | 6.9 | 8.6 | 10.8 | 13.4 | 16.6 | |
250 | 6.2 | 7.7 | 9.6 | 11.9 | 14.8 | 18.4 | |
280 | 6.9 | 8.6 | 10.7 | 13.4 | 16.6 | 20.6 | |
315 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | |
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | |
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | |
450 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | |
500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | |
560 | 13.7 | 17.2 | 21.4 | 26.7 | |||
630 | 15.4 | 19.3 | 24.1 | 30.0 | |||
710 | 17.4 | 21.8 | 27.2 | ||||
800 | 19.6 | 24.5 | 30.6 | ||||
900 | 22.0 | 27.6 | 34.4 | ||||
1000 | 24.5 | 30.6 | 38.2 | ||||
1200 | 29.4 | 36.7 | 45.9 | ||||
Ideal for indoor water supply in civil/industrial buildings and underground systems in communities/factories.

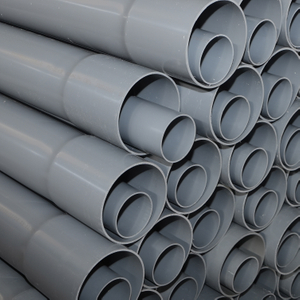

Applied in urban water supply networks, water treatment plant pipelines, and garden irrigation projects.
Serves marine aquaculture, well-digging projects, and other industrial uses requiring reliable water transmission.
Available in nominal outer diameters (DN) from 50mm to 1200mm. Wall thickness varies by standard size ratio (SDR41 to SDR11) and nominal pressure (0.63MPa to 2.5MPa). For example, DN50 pipe has a wall thickness of 2.0mm (SDR33) to 5.6mm (SDR11).
Lightweight design enables easy transportation and installation. The pipe's toughness and secure connection ensure construction efficiency.
Yes. It meets GB/T 17219 standards, with non-toxic materials and no harmful substance release, safe for direct drinking water transmission.
With excellent corrosion resistance and mechanical properties, it offers a long service life, outperforming traditional metal pipes in most environments.
Absolutely. Low flow resistance reduces pump load, making it perfect for urban water supply networks and large-scale long-distance projects.
